Alborán 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Alborán | P62 | Freire, Vigo | 1995 | 1996 | 8.1.1997 | in service (2019) |
|
Displacement standard, t |
1300 |
|
Displacement full, t |
2000 |
|
Length, m |
57.0 pp 65.9 oa |
|
Breadth, m |
10.5 |
|
Draught, m |
4.35 |
|
No of shafts |
1 |
|
Machinery |
1 Krupp-MaK 6M-453C diesel |
|
Power, h. p. |
3000 |
|
Max speed, kts |
15 |
|
Fuel, t |
diesel oil 575 |
|
Endurance, nm(kts) |
20000(13) |
|
Armament |
2 x 1 - 12.7/90, helicopter deck |
|
Electronic equipment |
FAR-2825, FR-2130S radars |
|
Complement |
32 + 22 passengers |
Project history: New construction 1123grt/900dwt stern-haul trawler hull taken over for use as an oceangoing fisheries protection ship. Funded by the Subsecretaria de la Marine Mercante for the Ministry of Agriculture, Fisheries, and Food (MAFA). Normal passenger complement includes two physicians and four fisheries inspectors. The helicopter deck large enough to accommodate an AB-212 is built over the stern and is 10.5 m above the normal waterline. Has 670m³ stores capacity, including 20m³ refrigerated storage.
Modernizations: None.
Naval service: No significant events.

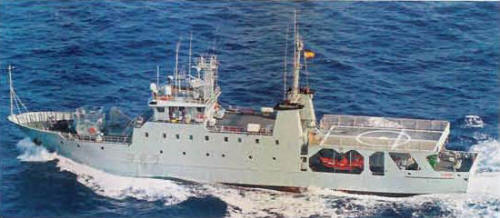

Alborán 2008
