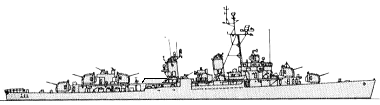

Lepanto 1963
Almirante Valdés 1963
Lepanto 1980
Almirante Valdés 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Lepanto (ex-Capps) | D21 | Gulf SB, Chickasaw, USA | 7/1941 | 31.5.1942 | 6/1943 // 15.5.1957 | stricken 12.1985 | |
| Almirante Ferrándiz (ex-David W. Taylor) | D22 | Gulf SB, Chickasaw, USA | 7/1941 | 4.7.1942 | 6/1943 // 15.5.1957 | stricken 11.1987 | |
| Almirante Valdéz (ex-Converse) | D23 | Bath Iron Wks, USA | 2.1942 | 30.8.1942 | 11/1942 // 1.7.1959 | stricken 10.1986 | |
| Alcalá Galiano (ex-Jarvis) | D24 | Seattle-Tacoma, Seattle, USA | 6/1943 | 14.2.1944 | 6/1944 // 3.11.1960 | stricken 10.1989 | |
| Jorge Juan (ex-McGowan) | D25 | Federal, Kearny, USA | 6/1943 | 14.11.1943 | 12/1943 // 1.12.1960 | stricken 9.1988 |
|
Displacement standard, t |
2325 |
|
Displacement full, t |
3005 |
|
Length, m |
112.5 wl 114.7 oa |
|
Breadth, m |
12.1 |
|
Draught, m |
4.19 full load |
|
No of shafts |
2 |
|
Machinery |
2 sets General Electric geared steam turbines, 4 Babcock & Wilcox boilers |
|
Power, h. p. |
60000 |
|
Max speed, kts |
38 |
|
Fuel, t |
oil 492 |
| Endurance, nm(kts) | 6500 (15) |
|
Armament |
D21, 22: 5 x 1 - 127/38 Mk 30, 3 x 2 - 40/60 Mk 1, 6 x 1 - 20/70 Mk 4, 2 x 3 - 324 TT, 2 x 24 - 178 Hedgehog Mk 11 ASWRL, 6 DCT, 2 DCR D23-25: 4 x 1 - 127/38 Mk 30, 3 x 2 - 76/50 Mk 33, 1 x 3 - 533 TT, 2 x 3 - 324 TT, 2 x 24 - 178 Hedgehog Mk 11 ASWRL, 4 DCT, 1 DCR |
|
Electronic equipment |
D21, 22: SPS-6C, SPS-10, Mk 25 radars, SQS-4 sonar D23-25: SPS-6C, SPS-10, Mk 25, 2x SPG-34, Mk 35 radars, SQS-29 sonar, BLR-1 ECM suite |
|
Complement |
290 |
Project history: Fletcher class destroyers transferred under MDAP.
Modernizations: None.
Naval service: No significant events.

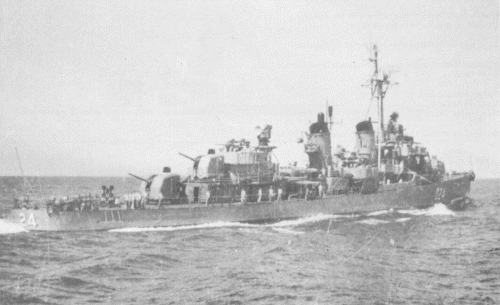

Alcalá Galiano 1977
