Bustamante 1914
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Bustamante | B | SECN, Cartagena | 8.1911 | 3.1.1913 | 3.1914 | discarded 10.1930 | |
| Villaamil | V | SECN, Cartagena | 11.1912 | 10.12.1913 | 8.1916 | discarded 1931 | |
| Cadarso (ex-Requesens) | C | SECN, Cartagena | 9.1913 | 18.12.1914 | 8.1917 | discarded 1930 |
|
Displacement normal, t |
530 |
|
Displacement full, t |
|
|
Length, m |
67.4 |
|
Breadth, m |
6.70 |
|
Draught, m |
1.70 |
|
No of shafts |
3 |
|
Machinery |
3 Parsons steam turbines, 3 Yarrow boilers |
|
Power, h. p. |
6250 |
|
Max speed, kts |
28 |
|
Fuel, t |
coal 80 |
|
Endurance, nm(kts) |
900(15) |
|
Armament |
Bustamante, Villaamil: 5 x 1 - 57/50 Vickers, 2 x 2 - 450 TT Cadarso: 5 x 1 - 57/50 Vickers, 2 x 2 - 381 TT |
|
Complement |
70 |
Project history: Built under British design (Vickers) under the law of 7.1.1908.
Modernizations: 1920s, all: + mines.
Naval service: No significant events.

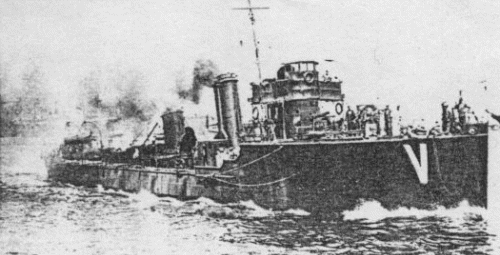

Villaamil 1916
