Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
Gerifalte | Rodman, Vigo | 2001 | in service (2019) | ||||
Décimo Aniversario | Rodman, Vigo | 2001 | in service (2019) | ||||
Arao | Rodman, Vigo | 2003 | in service (2019) | ||||
Abanto | Rodman, Vigo | 2005 | in service (2019) | ||||
Paíño | Rodman, Vigo | 2006 | in service (2019) | ||||
Albatros | Rodman, Vigo | 2007 | in service (2019) | ||||
Sacre | Rodman, Vigo | 2007 | in service (2019) | ||||
Alcatraz | Rodman, Vigo | 2008 | in service (2019) | ||||
Alca | Rodman, Vigo | 2009 | in service (2019) | ||||
Alcotán | Rodman, Vigo | 2009 | in service (2019) | ||||
Halcón | Rodman, Vigo | 2009 | in service (2019) |
Displacement standard, t |
90 |
Displacement full, t |
130 |
Length, m |
30.0 |
Breadth, m |
5.99 |
Draught, m |
1.75 |
No of shafts |
2 |
Machinery |
2 diesels |
Power, h. p. |
4730 |
Max speed, kts |
35 |
Fuel, t |
diesel oil |
Endurance, nm(kts) | 800(12) |
Armament |
none |
Electronic equipment | radar |
Complement |
12 |
Project history: GRP hull.
Modernizations: None.
Naval service: No significant events.

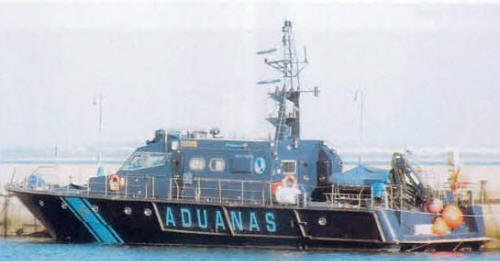

Arao 2003

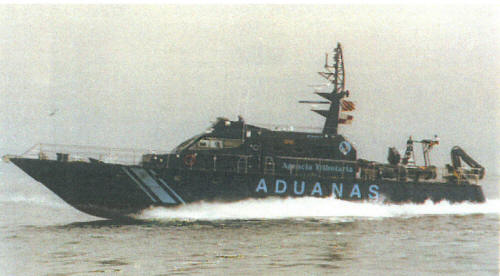

Gerifalte 2005
