Names |
Aguilucho Gavilán I - IV |
|
Builders |
Roberto Rodriguez, Vigo: Aguilucho, Gavilán I - IV |
|
Completed |
1973: Aguilucho 1975: Gavilán I 1976: Gavilán II 1983: Gavilán III 1987: Gavilán IV |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
1995: Aguilucho ~2005: Gavilán I ~2010: Gavilán II in service (2019): Gavilán III, IV |
|
Displacement standard, t |
|
|
Displacement full, t |
65 |
|
Length, m |
28.0 |
|
Breadth, m |
5.15 |
|
Draught, m |
1.30 |
|
No of shafts |
2 |
|
Machinery |
Aguilucho, Gavilán I: 2 MTU 820Db diesels Gavilán II-IV: 2 MTU 12V396 TB93 diesels |
|
Power, h. p. |
Aguilucho, Gavilán I: 2750 Gavilán II-IV: 3920 |
|
Max speed, kts |
Aguilucho, Gavilán I: 30 Gavilán II-IV: 24 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 750(30) |
|
Armament |
Aguilucho, Gavilán I: 1 x 1 - 20/70 Mk 10 Gavilán II-IV: 1 x 1 - 12.7/90 |
| Electronic equipment |
Aguilucho, Gavilán I: radar Gavilán II-IV: MRD38, BX-3532R radars |
|
Complement |
14 |
Project history: Patrol boats.
Modernizations: None.
Naval service: No significant events.

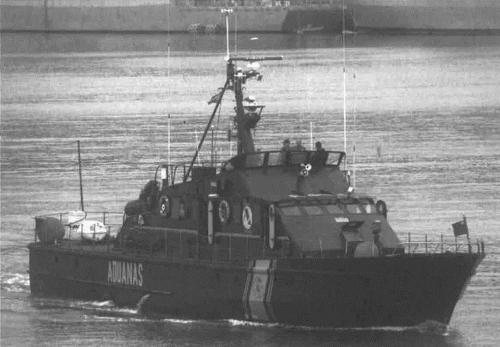

Gavilán III 2007
