LS1 1944
|
Names |
V20 (ex-LS1) V21 (ex-LS3) V22 (ex-LS2) |
|
Builders |
Kröger, Warnemünde, Germany: V20-22 |
|
Completed |
1942-1944 // 2-3/1946: V20-22 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
1949: V22 1964: V20, 21 |
|
Displacement standard, t |
42 |
|
Displacement full, t |
60 |
|
Length, m |
26.2 |
|
Breadth, m |
4.66 |
|
Draught, m |
1.38 |
|
No of shafts |
2 |
|
Machinery |
2 MWM diesels |
|
Power, h. p. |
700 |
|
Max speed, kts |
18 |
|
Fuel, t |
diesel oil 5.3 |
| Endurance, nm(kts) | 457(18) |
|
Armament |
2 x 1 - 20/65 C/38 |
|
Complement |
14 |

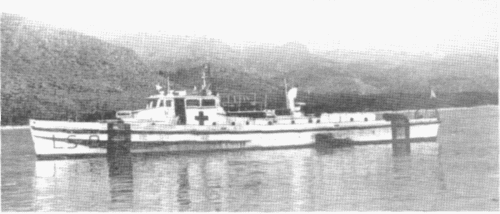

Project history: Rescue launches of Lüftwaffe of FL.B600 type, gained by Spain for control over neutrality regime and rescue of pilots fallen at sea around the Balearic islands. In February-March, 1946 they were converted to patrols.
Modernizations: None.
Naval service: No significant events.
LS2 1944
