SPANISH NAVY (SPAIN)

COASTAL FORCES

TORALLA patrol boats (1987-1989)

Names

P81 Toralla

P82 Formentor

Builders

Viudes, Barcelona: P81, 82

Completed

1987: P81

1989: P82

Losses

none

Transfers

none

Discarding

in service (2019): P81, 82

Displacement standard, t

56

Displacement full, t

78

Length, m

25.0 pp 28.5 oa

Breadth, m

6.50

Draught, m

1.45

No of shafts

2

Machinery

2 Bazán-MTU 8V396 TB93 diesels

Power, h. p.

2200

Max speed, kts

20

Fuel, t

diesel oil

Endurance, nm(kts) 1000(12)

Armament

1 x 1 - 12.7/90

Electronic equipment Decca RM1070, Koden radars

Complement

13

Project history: GRP-sheathed wooden hulls.

Modernizations: None.

Naval service: No significant events.

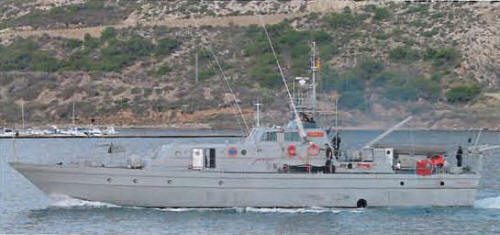

Toralla 2008
