LT21 1943
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Núm 21 (ex-S124), 11.1943- LT21 | Schlichting, Travemünde, Germany | 6.3.1943 | 4.1943 // 7.1943 | stricken 6.1956 | |||
| Núm 22 (ex-S134), 11.1943- LT22 | Lürssen, Vegesack, Germany | 1943 | 5.1943 // 7.1943 | stricken 6.1956 | |||
| Núm 23 (ex-S73), 11.1943- LT23 | Lürssen, Vegesack, Germany | 1941 | 2.1942 // 8.1943 | stricken 6.1956 | |||
| Núm 24 (ex-S78), 11.1943- LT24 | Lürssen, Vegesack, Germany | 1942 | 6.1942 // 8.1943 | stricken 6.1955 | |||
| Núm 25 (ex-S125), 11.1943- LT25 | Schlichting, Travemünde, Germany | 3.4.1943 | 5.1943 // 8.1943 | stricken 6.1955 | |||
| Núm 26 (ex-S126), 11.1943- LT26 | Schlichting, Travemünde, Germany | 8.5.1943 | 6.1943 // 8.1943 | stricken 11.1957 |
|
Displacement standard, t |
96 |
|
Displacement full, t |
115 |
|
Length, m |
34.9 |
|
Breadth, m |
5.28 |
|
Draught, m |
1.67 |
|
No of shafts |
3 |
|
Machinery |
Núm23, 24: 3 Daimler-Benz MB501 diesels Núm21, 22, 25, 26: 3 Daimler-Benz MB511 diesels |
|
Power, h. p. |
Núm23, 24: 6000 Núm21, 22, 25, 26: 7500 |
|
Max speed, kts |
Núm23, 24: 39 Núm21, 22, 25, 26: 41 |
|
Fuel, t |
diesel oil 13.5 |
| Endurance, nm(kts) | 700(35) |
| Armour, mm | Núm21, 22, 25, 26: CT: 12 - 10 |
|
Armament |
2 x 1 - 20/65 C/38, 2 - 533 TT (4), 2 DCR (6), 6 mines |
| Complement |
24 |
Project history: Former German MTBs of S38 class. They were bought by Spain in May, 1943 and received by Spanish crews at Bordeaux 31/7 and 28.8.1943.
Ship protection: S100 and later boats had armoured CT and bridge.
Modernizations: None.
Naval service: No significant events.

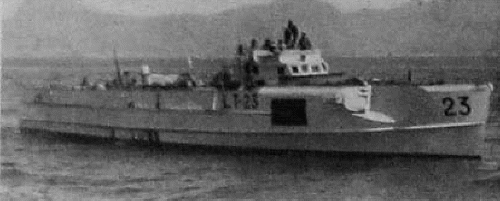

LT23 1948
