| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Cormorán | P41 | Bazán, Ferrol | 10.1985 | 28.12.1989 | stricken 1.1994, to Colombia (Espartana) |
|
Displacement standard, t |
300 |
|
Displacement full, t |
374 |
|
Length, m |
55.6 |
|
Breadth, m |
7.59 |
|
Draught, m |
1.97 hull |
|
No of shafts |
3 |
|
Machinery |
3 MTU-Bazán 16V956 TB91 diesels |
|
Power, h. p. |
13500 |
|
Max speed, kts |
33 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 2000(15) |
|
Armament |
1 x 1 - 40/70 Bofors 350, 1 x 1 - 20/90 GAM-B01 |
| Sensors | Raytheon 1620 radar, Alcor-C e/o director |
| Complement |
32 |
Project history: Launched as a speculation. Taken over by Spanish Navy in 1989 as testbed and patrol vessel.
Modernizations: None.
Naval service: No significant events.

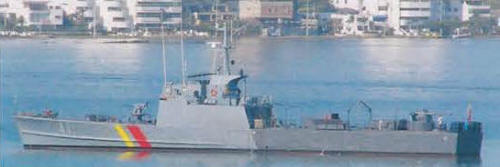

Espartana 2008
