Names |
V22 Cabo Fradera, later- PVI01 Cabo Fradera, 1986- P201 Cabo Fradera |
|
Builders |
Bazán, La Carraca, Cádiz: V22 |
|
Completed |
1963: V22 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
in service (2019): P201 |
|
Displacement standard, t |
21 |
|
Displacement full, t |
28 |
|
Length, m |
17.8 |
|
Breadth, m |
4.20 |
|
Draught, m |
0.82 |
|
No of shafts |
2 |
|
Machinery |
2 diesels |
|
Power, h. p. |
280 |
|
Max speed, kts |
10 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 7.6/90 |
| Electronic equipment | none |
|
Complement |
9 |
Project history: Boat for Miña river (Portugal border).
Modernizations: 1980s: + Furuno radar
Naval service: No significant events.

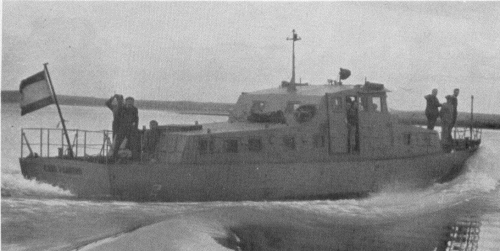

Cabo Fradera 1976

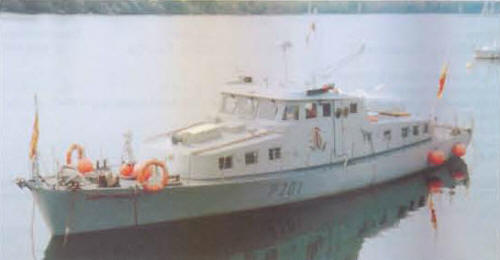

Cabo Fradera 2003
