Barceló 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Barceló | P11 | Lürssen, Vegesack | 3.3.1975 | 10.10.1975 | 20.3.1976 | stricken 12.2009 | |
| Laya | P12 | Bazán, La Carraca | 9.5.1975 | 18.12.1975 | 23.12.1976 | stricken 2.2010 | |
| Javier Quiroga | P13 | Bazán, La Carraca | 9.5.1975 | 18.12.1975 | 4.4.1977 | stricken 4.2005 | |
| Ordóñez | P14 | Bazán, La Carraca | 9.2.1976 | 10.9.1976 | 7.6.1977 | stricken 9.2009 | |
| Acevedo | P15 | Bazán, La Carraca | 9.2.1976 | 10.9.1976 | 14.7.1977 | stricken 1.2009 | |
| Cándido Pérez | P16 | Bazán, La Carraca | 1976 | 3.3.1977 | 25.11.1977 | stricken 4.2009 |
|
Displacement standard, t |
110 |
|
Displacement full, t |
134 |
|
Length, m |
36.2 pp 43.2 oa |
|
Breadth, m |
5.80 |
|
Draught, m |
1.75 hull 2.15 propellers |
|
No of shafts |
2 |
|
Machinery |
2 MTU-Bazán 16V538 TB90 diesels |
|
Power, h. p. |
7320 |
|
Max speed, kts |
36.5 |
|
Fuel, t |
diesel oil 18 |
| Endurance, nm(kts) | 1200(16) |
|
Armament |
1 x 1 - 40/70 Bofors 350, 1 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90, fitted for 2 - 533 TT |
| Sensors | Raytheon 1620 radar, CSEE e/o director |
| Complement |
19 |
Project history: Ordered in 1973. For fishery protection in peacetime. TT were not fitted.
Modernizations: None.
Naval service: No significant events.

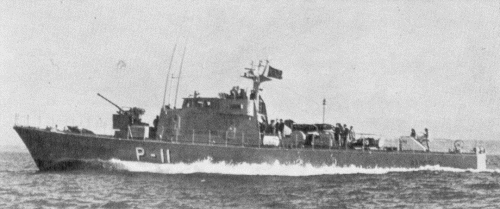

Barceló 1976

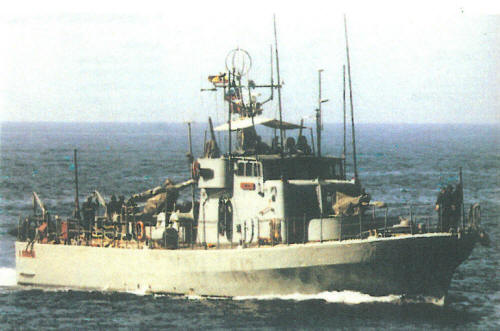

Javier Quiroga 2003
