Anaga 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Anaga | PVZ21, 1986- P21 | Bazán, La Carraca | 4.1979 | 14.2.1980 | 14.10.1980 | stricken 6.2010 | |
| Tagomago | PVZ22, 1986- P22 | Bazán, La Carraca | 14.2.1980 | 30.1.1981 | in service (2019) | ||
| Marola | PVZ23, 1986- P23 | Bazán, La Carraca | 11.4.1980 | 4.6.1981 | stricken 6.2010 | ||
| Mouro | PVZ24, 1986- P24 | Bazán, La Carraca | 21.4.1980 | 14.7.1981 | stricken 6.2010 | ||
| Grosa | PVZ25, 1986- P25 | Bazán, La Carraca | 15.12.1980 | 15.9.1981 | stricken 6.2012 | ||
| Medas | PVZ26, 1986- P26 | Bazán, La Carraca | 15.12.1980 | 16.10.1981 | in service (2019) | ||
| Ízaro | PVZ27, 1986- P27 | Bazán, La Carraca | 15.12.1980 | 9.12.1981 | stricken 12.2010 | ||
| Tabarca | PVZ28, 1986- P28 | Bazán, La Carraca | 15.12.1980 | 30.12.1981 | in service (2019) | ||
| Deva | PVZ29, 1986- P29 | Bazán, La Carraca | 24.11.1981 | 3.6.1982 | stricken 7.2004 | ||
| Bergantín | PVZ210, 1986- P30 | Bazán, La Carraca | 24.11.1981 | 28.7.1982 | stricken 6.2010 |
|
Displacement standard, t |
296 |
|
Displacement full, t |
350 |
|
Length, m |
40.0 pp 44.4 oa |
|
Breadth, m |
6.60 |
|
Draught, m |
2.60 |
|
No of shafts |
1 |
|
Machinery |
1 MTU-Bazán 16V956 SB90 diesel |
|
Power, h. p. |
4500 |
|
Max speed, kts |
20 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 4000(13) |
|
Armament |
1 x 1 - 76/50 Mk 22, 1 x 1 - 20/70 Mk 10 |
| Sensors | 2x Decca 1226 radars |
| Complement |
25 |
Project history: Specially designed for fishery protection and EEZ patrol service, relieving the Lazaga class.
Modernizations: None.
Naval service: No significant events.

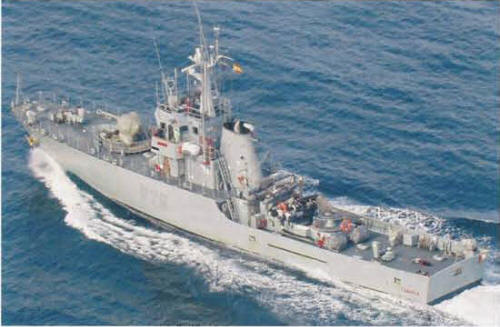

Tabarca 2008
