Puigcerdá 1875
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Puigcerdá | F C de la Méditerranée, La Seyne, France | 28.9.1874 | 19.11.1874 | 1875 | discarded 1900 |
|
Displacement normal, t |
552 |
|
Displacement full, t |
|
|
Length, m |
39.0 |
|
Breadth, m |
9.00 |
|
Draught, m |
2.50 |
|
No of shafts |
2 |
|
Machinery |
|
|
Power, h. p. |
328 |
|
Max speed, kts |
8 |
|
Fuel, t |
coal 23 |
| Endurance, nm(kts) | |
|
Armour, mm |
iron; belt: 100, turrets: 100 - 80 |
|
Armament |
1 x 1 - 160/16 Palliser MLR, 1 x 2 - 121/12 SBML |
|
Complement |
59 |
Project history: Iron-hulled low-freeboard monitor.
Ship protection: 100mm iron armour protected sides and turrets.
Modernizations: None.
Naval service: No significant events.

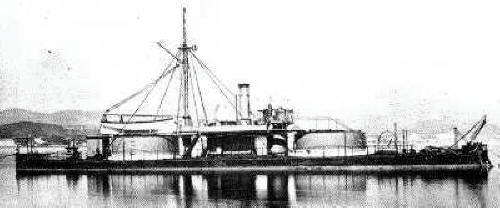

Puigcerdá
© Ivan Gogin, 2014
