Names |
P11 Swift Knight, 1994- PH54 Tiger Shark P12 Swift Lancer, 1993- PH50 Hammerhead Shark P14 Swift Swordsman, 1993- PH51 Mako Shark P15 Swift Warrior, 1994- PH55 Basking Shark P16 Swift Archer, 1993- PH52 White Shark P17 Swift Warlord, 1997- PH58 Whitetip Shark P18 Swift Combatant, 1993- PH53 Blue Shark P19 Swift Challenger, 1997- PH59 Blacktip Shark P20 Swift Cavalier, 1997- PH60 Goblin Shark P21 Swift Conqueror, 1994- PH56 Sandbar Shark P22 Swift Centurion, 1997- PH61 School Shark P23 Swift Chieftain, 1994- PH57 Thresher Shark |
|
Builders |
STM, Jurong: P11, 12, 14-23 |
|
Completed |
1981: P11, 12, 14-23 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
2008: PH52, 53 2009: PH50, 51, 54, 55-58 2010: PH59 2011: PH60, 61 |
|
Displacement standard, t |
|
|
Displacement full, t |
46 |
|
Length, m |
20.0 pp 22.7 oa |
|
Breadth, m |
6.20 |
|
Draught, m |
1.60 hull 3.00 propellers |
|
No of shafts |
2 |
|
Machinery |
2 Deutz SBA-16M816 diesels |
|
Power, h. p. |
2660 |
|
Max speed, kts |
33 |
|
Fuel, t |
diesel oil 9 |
|
Endurance, nm(kts) |
900(10) |
|
Armament |
1 x 1 - 20/90 GAM-B01, 2 x 1 - 7.6/90 |
|
Electronic equipment |
Decca 1226 radar |
|
Complement |
12 |
Project history: Based on Australian de Havilland Capricornia design. Aluminium construction.
Modernizations: None.
Naval service: All were transferred to Coast Guard and renamed in 1993-1997 in groups of four.

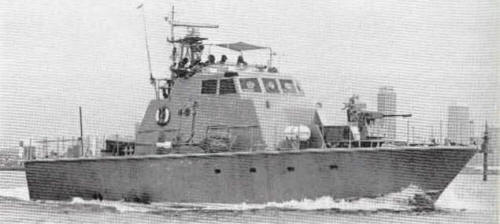

Swift Cavalier 1984
