Sea Wolf 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Sea Wolf | 76 | Lürssen, Vegesack, West Germany | 1972 | stricken 2008 | |||
| Sea Lion | 77 | Lürssen, Vegesack, West Germany | 1972 | stricken 2008 | |||
| Sea Dragon | 78 | STM, Jurong | 1974 | stricken 2008 | |||
| Sea Tiger | 79 | STM, Jurong | 1974 | stricken 2008 | |||
| Sea Hawk | 80 | STM, Jurong | 1975 | stricken 2008 | |||
| Sea Scorpion | 81 | STM, Jurong | 29.2.1976 | stricken 2008 |
|
Displacement standard, t |
230 |
|
Displacement full, t |
255 |
|
Length, m |
42.3 wl 44.9 oa |
|
Breadth, m |
7.00 |
|
Draught, m |
2.48 |
|
No of shafts |
4 |
|
Machinery |
4 MTU 16V538 TB92 diesels |
|
Power, h. p. |
14400 |
|
Max speed, kts |
40 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1800(15) |
|
Armament |
1 x 3 Gabriel I SSM, 2 x 1 Gabriel I SSM (5 Gabriel I), 1 x 1 - 57/70 SAK-57 Mk 1, 1 x 1 - 40/70 Bofors 315 |
|
Electronic equipment |
Decca TM626, WM28 radars |
|
Complement |
40 |
Project history: Lürssen TNC 45 FACs ordered in 1970. Armed with the first Gabriel SSMs to be exported.
Modernizations: 1988-1990, all: - 1 x 3 Gabriel I SSM (2 Gabriel SSM left); + 2 x 2 Harpoon SSM (4 RGM-84C)
1991-1993, all: + SEWS-1101 ECM suite, 4x RBOC Mk 137 decoy RL, SCS2000 CCS
1995-1996, all: - 1 x 1 - 40/70; + 1 x 2 Simbad SAM (12 Mistral), 2x Snowball decoy RL
Naval service: No significant events.

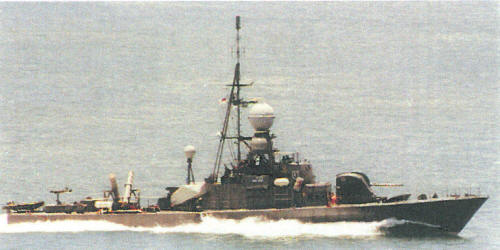

Sea Lion 1999
