NAVY OF SIERRA LEONE (SIERRA LEONE)
Moa 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 001 | Wuzhou SY, China | 6.1973 | deleted 1979 | ||||
| 002 | Wuzhou SY, China | 6.1973 | discarded early 1980s | ||||
| 003 | Wuzhou SY, China | 1976 | discarded early 1980s | ||||
| Moa | Wuzhou SY, China | 3.1987 | inoperable 1998 | ||||
| Naimbana | Wuzhou SY, China | 3.1987 | inoperable 1998 |
|
Displacement standard, t |
123 |
|
Displacement full, t |
135 |
|
Length, m |
38.8 |
|
Breadth, m |
5.41 |
|
Draught, m |
1.55 |
|
No of shafts |
4 |
|
Machinery |
2 M-50F-4 diesels, 2 12D6 diesels |
|
Power, h. p. |
4200 (2x1200+2x910) |
|
Max speed, kts |
28.5 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
750(16.5) |
|
Armament |
2 x 2 - 37/63 type 61, 2 x 2 - 25/80 type 61M |
|
Sensors |
type 351 or type 756 radar |
|
Complement |
36 |

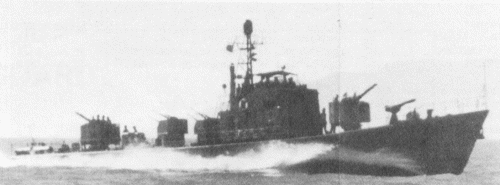

Project history: Chinese-built patrol boats of type 062.
Modernizations: None.
Naval service: No significant events.
