NAVY OF SENEGAL (SENEGAL)

AMPHIBIOUS SHIPS

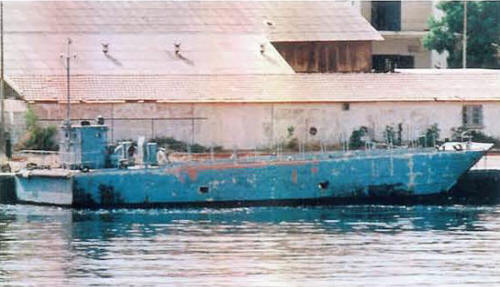

CTM2 landing craft (1965/1999)

Name No Yard No Builder Laid down Launched Comp. Fate
CTM2 (ex-CTM5), later- unnamed 2   CMN, Cherbourg, France 4.1.1965 24.6.1965 7.1965 // 1.10.1999 in service (2020)



Displacement standard, t

56

Displacement full, t

150

Length, m

23.8

Breadth, m

6.35

Draught, m

1.17

No of shafts

2

Machinery

2 Poyaud 520V8 diesels

Power, h. p.

480

Max speed, kts

9.5

Fuel, t

diesel oil 3

Endurance, nm(kts) 380(8)

Armament

2 x 1 - 12.7/90

Electronic equipment Koden radar
Capacity

90t of cargo

Complement

6

Project history: LCM of French CTM type, transferred after service under French flag.

Modernizations: None.

Naval service: No significant events.

2001
