NAVY OF SENEGAL (SENEGAL)

ESCORTS

FOULADOU patrol ship (2016)

Name No Yard No Builder Laid down Launched Comp Fate
Fouladou     Océa, Les Sables d'Olonne, France 2015 7.2016 12.2016 in service (2020)



Displacement standard, t



Displacement full, t

500

Length, m

56.1 pp 58.0 oa

Breadth, m

9.41

Draught, m

2.70

No of shafts

2

Machinery

2 MTU 16V4000 M73L diesels

Power, h. p.

7720

Max speed, kts

24

Fuel, t

diesel oil
Endurance, nm(kts) 5500(12)

Armament

1 x 1 - 30/80 Narwhal 30, 2 x 1 - 12.7/90

Electronic equipment

2x radars

Complement 24 + 32 passengers

Project history: Océa OPV190 design, ship was ordered in 2015. Aluminium construction. Two 7.5m RHIBs are carried on davits.

Modernizations: None.

Naval service: No significant events.

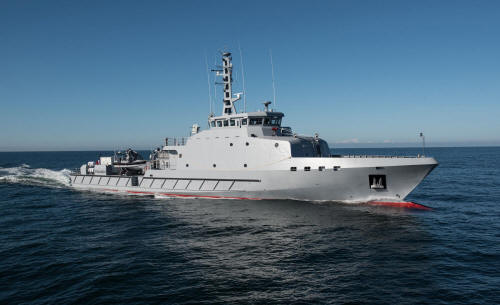

Fouladou

Many thanks to Dmitriy Babichev for correcting the information on this page.
