Badr 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| بدر [Badr] | 612 | Tacoma Boat, Tacoma, USA | 30.5.1979 | 26.1.1980 | 28.9.1981 | in service (2019) | |
| اليرموك [Al Yarmook] | 614 | Tacoma Boat, Tacoma, USA | 13.12.1979 | 13.5.1980 | 10.5.1982 | in service (2019) | |
| حطين [Hitteen] | 616 | Tacoma Boat, Tacoma, USA | 19.5.1980 | 5.9.1980 | 12.10.1982 | in service (2019) | |
| تبوك [Tabuk] | 618 | Tacoma Boat, Tacoma, USA | 22.9.1980 | 18.6.1981 | 10.1.1983 | in service (2019) |
|
Displacement standard, t |
900 |
|
Displacement full, t |
1035 |
|
Length, m |
74.7 |
|
Breadth, m |
9.60 |
|
Draught, m |
2.59 |
|
No of shafts |
2 |
|
Machinery |
CODOG: 1 General Electric LM-2500 gas turbine / 2 MTU 12V652 TB91 diesels |
|
Power, h. p. |
23000 / 3000 |
|
Max speed, kts |
30 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
4000(20) |
|
Armament |
2 x 4 Harpoon SSM (8 RGM-84C), 1 x 1 - 76/62 Mk 75, 1 x 6 - 20/76 Phalanx Mk 15, 2 x 1 - 20/70 Mk 10, 1 x 1 - 81/12 M29 mortar, 2 x 1 - 40/19 Mk 19 grenade launchers, 2 x 3 - 324 Mk 32 mod.5 TT (Mk 46 mod.2) |
|
Electronic equipment |
SPS-40B, SPS-55, Mk 92, Mk 90 radars, SQS-56 sonar, SLQ-32(v)1 ECM suite, 2x Mk 36 SRBOC decoy RL |
|
Complement |
58 |
Project history: US PCG1 type, ordered in 1977. Powerfully armed for their size and equipped with modern US electronics. Ships were completed with 25% overweight.
Modernizations: 2001-2002, all: + Safire e/o system
Naval service: No significant events.

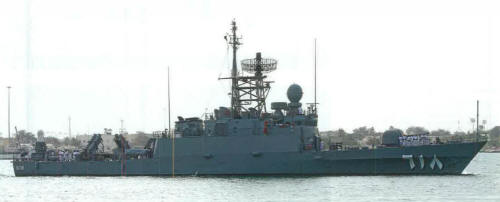

Tabuk 2012
