As Siddiq 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| أس صديق [As Siddiq] | 511 | Peterson, Sturgeon Bay, USA | 30.9.1978 | 22.9.1979 | 15.12.1980 | in service (2019) | |
| الفاروق [Al Farouq] | 513 | Peterson, Sturgeon Bay, USA | 12.3.1979 | 17.5.1980 | 22.6.1981 | in service (2019) | |
| عبدال عزيز [Abdul Aziz] | 515 | Peterson, Sturgeon Bay, USA | 19.10.1979 | 23.8.1980 | 3.9.1981 | in service (2019) | |
| فيصل [Faisal] | 517 | Peterson, Sturgeon Bay, USA | 4.3.1980 | 15.11.1980 | 23.11.1981 | in service (2019) | |
| خالد [Khalid] | 519 | Peterson, Sturgeon Bay, USA | 27.6.1980 | 28.3.1981 | 11.1.1982 | in service (2019) | |
| عمر [Amr] | 521 | Peterson, Sturgeon Bay, USA | 21.10.1980 | 13.6.1981 | 21.6.1982 | in service (2019) | |
| طارق [Tariq] | 523 | Peterson, Sturgeon Bay, USA | 10.2.1981 | 23.9.1981 | 16.8.1982 | in service (2019) | |
| عقباه [Oqbah] | 525 | Peterson, Sturgeon Bay, USA | 8.5.1981 | 12.12.1981 | 18.10.1982 | in service (2019) | |
| أبو عبيده [Abu Obaidah] | 527 | Peterson, Sturgeon Bay, USA | 4.9.1981 | 3.4.1982 | 6.12.1982 | in service (2019) |
|
Displacement standard, t |
425 |
|
Displacement full, t |
495 |
|
Length, m |
58.0 |
|
Breadth, m |
8.08 |
|
Draught, m |
1.95 hull |
|
No of shafts |
2 |
|
Machinery |
CODOG: 1 General Electric LM-2500 gas turbine / 2 MTU 12V652 TB91 diesels |
|
Power, h. p. |
23000 / 3000 |
|
Max speed, kts |
38 |
|
Fuel, t |
diesel / gas turbine oil |
|
Endurance, nm(kts) |
2900(14) |
|
Armament |
2 x 2 Harpoon SSM (4 RGM-84C), 1 x 1 - 76/62 Mk 75, 1 x 6 - 20/76 Phalanx Mk 15, 2 x 1 - 20/70 Mk 10, 1 x 1 - 81/12 M29, 2 x 1 - 40/19 Mk 19 grenade launchers |
|
Electronic equipment |
SPS-55, Mk 92, Mk 90 radars, SLQ-32(v)1 ECM suite, 2x Mk 36 SRBOC decoy RL |
|
Complement |
38 |
Project history: US PGG type, ordered in 1972. They have the same machinery as larger Badr class corvettes and the same armament (without ASW abilities). Heavily overweight.
Modernizations: None.
Naval service: No significant events.

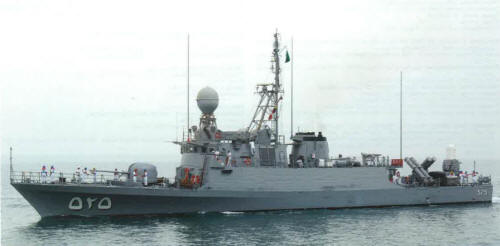

Oqbah 2010
