Al Jawf 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| الجوف [Al Jawf] | 420 | Vosper, Woolston, UK | 1988 | 2.8.1989 | 12.12.1991 | in service (2019) | |
| شقرا [Shaqra] | 422 | Vosper, Woolston, UK | 14.5.1990 | 15.5.1991 | 8.2.1993 | in service (2019) | |
| الخارج [Al Kharj] | 424 | Vosper, Woolston, UK | 4/1990 | 9.2.1993 | 7.8.1997 | in service (2019) |
|
Displacement standard, t |
390 |
|
Displacement full, t |
465 |
|
Length, m |
50.0 pp 52.5 oa |
|
Breadth, m |
10.5 |
|
Draught, m |
2.20 |
|
No of shafts |
2 vertical cycloidal propellers / 2 Schottel bow thrusters |
|
Machinery |
2 Paxman Valenta 6RP200E diesels / 2 electric motors |
|
Power, h. p. |
1500 / 400 |
|
Max speed, kts |
14 / 7 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3000(12) |
|
Armament |
1 x 2 - 30/75 Emerlec EX-30, 3 x 1 - 7.6/90, 2x PAP-104 Mk 5 USV, mine disposal divers |
|
Electronic equipment |
type 1007 radar, Sea Hawk Mk 2 (LSEOS Mk 2) e/o system, type 2093 sonar, Shiploc ECM suite, 2x Mk 36 SRBOC decoy RL, Nautis M CCS |
|
Complement |
40 |
Project history: Six ships of Sandown class were ordered in 1988 but building of 426 Onaizah, 428 Al Raas and 430 Al Bahan was canceled. Differ from British ships by armament.
Modernizations: None.
Naval service: No significant events.

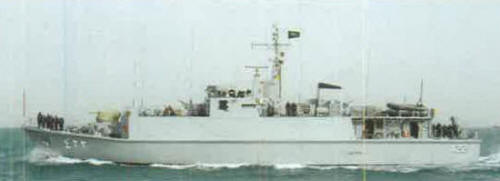

Shaqra 2008
