Svyatoy Georgiy 1917
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Святой Георгий [Svyatoy Georgiy] (ex-Ф-1 [F-1]), 5.1920- Коммунар [Kommunar] | Fiat-San Giorgio, La Spezia, Italy | 10.1916 | 21.4.1917 | 5.1917 | stricken 7.1924 |
|
Displacement standard, t |
|
|
Displacement normal, t |
260 / 305 |
|
Length, m |
41.2 |
|
Breadth, m |
4.30 |
|
Draught, m |
3.10 |
|
No of shafts |
2 |
|
Machinery |
2 Fiat diesels / 4 electric motors |
|
Power, h. p. |
700 / 500 |
|
Max speed, kts |
13 / 8.5 |
|
Fuel, t |
diesel oil 11.5 |
| Endurance, nm(kts) | 1720(9) / 45(4) |
|
Armament |
1 x 1 - 75/50 Canet, 2 x 1 - 7.6/94, 2 - 450 TT (bow, 4) |
|
Complement |
27 |
|
Diving depth operational, m |
30 |
Project history: Double-hulled coastal submarine with 7 watertight compartments. design of Laurenti. On design features (absence of a heat insulation, frosting of air vent valves etc.) she could not be used in conditions of Barents and White seas.
Modernizations: None.
Naval service: No significant events.

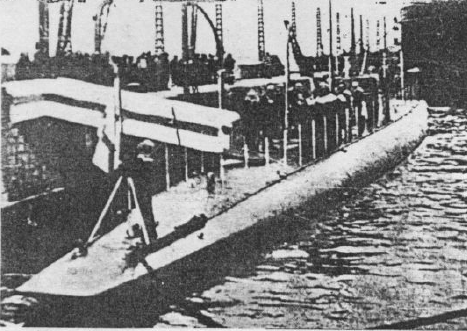

Svyatoy Georgiy 1917
© Ivan Gogin, 2009-11
