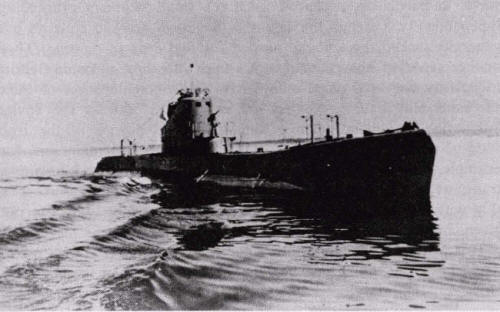

Shch-216 1941
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Ù-135 [Shch-135], 6.1949- Ñ-135 [S-135] | 477 | 194 Yd (Marti Yd), Leningrad // 202 Yd (Dalzavod Yd), Vladivostok | 8.1938 | 21.4.1940 | 9.1941 | stricken 4.1958 | |
| Ù-136 [Shch-136], 6.1949- Ñ-136 [S-136] | 478 | 194 Yd (Marti Yd), Leningrad // 202 Yd (Dalzavod Yd), Vladivostok | 8.1938 | 27.4.1940 | 9.1941 | stricken 4.1958 | |
| Ù-137 [Shch-137], 6.1949- Ñ-137 [S-137] | 479 | 194 Yd (Marti Yd), Leningrad // 202 Yd (Dalzavod Yd), Vladivostok | 8.1938 | 1.7.1940 | 11.1941 | stricken 4.1958 | |
| Ù-138 [Shch-138] | 480 | 194 Yd (Marti Yd), Leningrad // 202 Yd (Dalzavod Yd), Vladivostok | 10.1938 | 22.7.1940 | 12.1941 | internal explosion 18.7.1942 | |
| Ù-216 [Shch-216] | 1085 | 200 Yd (61 Kommunar Yd), Nikolayev | 7.1939 | 30.5.1940 | 8.1941 | sunk 16.2.1944 | |
| Ù-405 [Shch-405] | 510 | 194 Yd (Marti Yd), Leningrad | 12.1938 | 16.12.1939 | 6.1941 | sunk 13.6.1942 | |
| Ù-406 [Shch-406] | 511 | 194 Yd (Marti Yd), Leningrad | 12.1938 | 17.12.1939 | 6.1941 | sunk 1.6.1943 | |
| Ù-407 [Shch-407], 6.1949- Ñ-407 [S-407] | 512 | 194 Yd (Marti Yd), Leningrad | 4.1939 | 4.6.1940 | 9.1941 | test ship 2.1956, stricken 1.1959 | |
| Ù-408 [Shch-408] | 513 | 194 Yd (Marti Yd), Leningrad | 4.1939 | 4.6.1940 | 9.1941 | sunk 22-24.5.1943 | |
| Ù-411 [Shch-411], 6.1949- Ñ-411 [S-411] | 514 | 194 Yd (Marti Yd), Leningrad | 6.1939 | 31.5.1941 | 7.1945 | charging plant 3.1957 | |
| Ù-412 [Shch-412], 6.1949- Ñ-412 [S-412] | 515 | 194 Yd (Marti Yd), Leningrad | 6.1939 | 31.5.1941 | 8.1946 | charging plant 3.1957 | |
| Ù-413 [Shch-413] (ex-Ù-409 [Shch-409]) | 552 | 194 Yd (Marti Yd), Leningrad | 6.1939 | 28.6.1941 | --- | cancelled 7.1946 | |
| Ù-414 [Shch-414] (ex-Ù-410 [Shch-410]) | 553 | 194 Yd (Marti Yd), Leningrad | 6.1939 | 28.6.1941 | --- | cancelled 7.1946 |
|
Displacement standard, t |
|
|
Displacement normal, t |
589 / 705 |
|
Length, m |
58.8 |
|
Breadth, m |
6.40 |
|
Draught, m |
4.00 |
|
No of shafts |
2 |
|
Machinery |
2 38K8 diesels / 2 PG-5 electric motors |
|
Power, h. p. |
1600 / 800 |
|
Max speed, kts |
14 / 8 |
|
Fuel, t |
diesel oil 55 |
| Endurance, nm(kts) | 5100(8) / 100(2.5) |
|
Armament |
2 x 1 - 45/43 21K, 6 - 533 TT (4 bow, 2 stern, 10) Shch-412: 1 x 1 - 12.7/79, 6 - 533 TT (4 bow, 2 stern, 10) |
| Electronic equipment | Mars-12 hydrophone |
|
Complement |
40 |
|
Diving depth operational, m |
75 |
Project history: Well-known "Shchukas" ("pikes"): the most mass series of Soviet WWII-era submarines. They were designed since 1928 as patrol small (later medium) submarines for Baltic. The big effect on the design was rendered by raised British submarine L55 from which there was borrowed architectural type: saddle-tank with bulge tanks, and a hull form. III series submarines differed by only one 45mm gun, all subsequent submarines received two, nevertheless, weakness of artillery armament during war remained one of the main lacks of the project.
Submarines were built in six series, but intra-serial differences were insignificant. Intended for Pacific V series (originally III-bis) were built taking into account requirements to transportation by railways and subsequent assembling; they had other division on compartments, CT form and was built with wide application of welding. On V-bis (originally VII) and V-bis-2 series the light hull and CT form were changed. On X series new streamlined CT of "limousine" form was entered, but it has led to only strong washing of the bridge, therefore on X-dis series the CT has usual form, but fore gun was moved to a deck. Also two last series received new more powerful diesels. Maximal diving depth for all series was 90m. Submarines of V-bis-2 and X-bis series differed by the best seaworthiness among all Soviet WWII submarines.
Modernizations: 1941 - 1943, some boats: - 1 x 1 - 45/43; + 1 x 1 - 12.7/79.
1943, Shch-407; 1945, Shch-136: + type 129 sonar
Naval service: Shch-138 was sunk 18.7.1942 at Nikolaevsk-on-Amur after explosion of torpedoes (probably, as result of sabotage). Shch-216 was sunk 17.2.1944 by German submarine chasers UJ106 and UJ103 W off Cape Tarhankut. Shch-405 was lost 13.6.1942 between Seskar and Lavensaari islands, possibly on a mine. Shch-406 was lost between 29/5. and 1.6.1943 in Gulf of Finland on a mine or as result of surface ships attack. Shch-408 was sunk 22.5.1943 at Vaindlo Island by Finnish minelayer Ruotsinsalmi and motor launch VMV6.
Shch-406
