S-61 submarines (project 613) (1951 - 1958)

S-61 1951

S-361 1956

S-380 1960

S-145 1962

S-65 1965

S-62 1960

SS-151 1975

S-162 1970

S-164 1975

Project history: This was one of three submarine designs developed by TsKB-18 to TTZs formulated in 1946: Project 611 for a large submarine, Project 612 for a small submarine (not built) and Project 613 for a medium submarine, the latter to succeed the earlier 'S' and 'Shch' classes. An earlier Project 608 for a follow-on 500-600t medium submarine was begun in 1939. Work was stopped by the outbreak of war, but by 1942 two versions (770t and 820t) were being considered. A new TTZ issued in September 1943 asked for a 640-tonner with a 120m test depth, and 660t and 687r versions were proposed. Project 608 was dropped in 1944 when the German U250 was raised and examined. The new TTZs (January 1946) required a diving depth of 200m. The Project 613 design was developed between October 1947 and August 1948. The Sormovo yard at Gorkiy was assigned to mass-produce these submarines, hopefully without interfering with major surface combatants. A special project office established there to work out detailed plans (SKB-112, for shipyard 112) became die Lazurit TsKB, responsible for submarines built at Gorkiy and at Komsomolsk-on-Amur.

    Although nominally reflecting German Type XXI practice, these boats had only slightly figure-eight form hulls at their battery sections fore and aft of the control room. The hull form aft resembled that of Type XXI. The Tamir active sonar was in the forefoot, with the Feniks passive sonar (similar to the earlier German Balkon) in a bulb at the fore end of the horizontal keel, under the breeches of the torpedo tubes.

Modernizations: 1957-1960, all: were armed with only 6 - 533 TT (4 bow, 2 stern, 12 or 22 mines) (no artillery) and had Flag radar, Plutoniy, Feniks sonars, Nakat ECM suite

1958, S-146 - under Project P613: 1089/1342t, 17.5/11.5kts, /300(2)nm, compl. 37; 1 P-5 SSM, 6 - 533 TT (4 bow, 2 stern, 6)

1958, S-149; 1960, S-151; 1961, S-62, S-73 - under Project 640 were converted to radar pickets: 1062/1342t, 76.0x6.30x5.10m, 17.5/8.9kts, 7500(8)/90(3)nm, compl. 56; 4- 2 - 533 TT (stern, 4 at all); + MR-200 Kasatka radar

1958, S-229 - under Project V613: 1044/t, 76.0x11.0x6.4m, 8.4.7kts, /5(4.7)nm, 1 S4.1 or S4.5 SLBM test maquette, 6 - 533 TT (4 bow, 2 stern, 6)

1959, S-345, S-378 - under Project 613Kh: + new MG-25 Yakhta sonar

1959, S-383 - under Project 613 Avgust: hull was sheathed by rubber

1960, S-384 - under Project 613Ts: new batteries, underwater endurance was ~500(2)nm

1960, S-69, S-80, S-44, S-46, S-158, S-162 - under Project 644 as SSG: 1160/1430t, 76.0x6.60x5.40m, 16/9.5kts, /260(2)nm, 2 P-5 SSM, 4 - 533 TT (bow, 4), Flag radar, Plutoniy, Feniks sonars, Nakat ECM suite

1961, S-229 - under Project 613D4: 1100/1342t, 76.0x6.30x6.40m, /10(10)nm, 50m diving depth; 1 x 1 K1.1 test maquette of R-21 SLBM, 6 - 533 TT (4 bow, 2 stern, 6)

1961, S-43 - under Project 613S: + rescue and salvage equipment

1961, S-162 - under Project 644D: - 2 P-5 SSM; + 2 P-5D SSM

1961, S-64, S-155; 1962, S-61; 1963, S-142, S-152, S-164 - under Project 665 as SSG: 1478/1660t, 85.0x6.70x5.80m, 15.4/11kts, /400(2)nm, compl. 58; 4 P-5 SSM, 4 - 533 TT (bow, 4), Flag radar, Plutoniy, Kola sonars, Nakat ECM suite

1962, S-178, S-283; 1963, S-66, S-67, S-70, S-74, S-86, S-88, S-145, S-194, S-197, S-172, S-185; 1964, S-222, S-331, S-161, S-168, S-181, S-195; 1966, S-176; 1969, S-266; 1960s, S-140, S-224, S-141, S-150, S-154, S-160 - under Project 613V: 1147/1354t, 10630(10)/340(2)nm, 5.5m draught

1962, S-72 - under Project 613A: 1100/1342t, 76.0x6.30x6.40m, 18.3/10kts, 8580(10) / 10(10)nm, 50m diving depth; 1 x 1 Ametist SSM (1), 6 - 533 TT (4 bow, 2 stern 6)

1962, S-63 - under Project 666: converted to rescue submarine; + UPS rescue submersible

1962, S-158 - under Project 644-7: - 2 P-5 SSM; + 2 P-7 SSM

1963, S-229 - under Project 613D7: - 1 x 1 K1.1 test maquette of R-21 SLBM; + 1 x 1 K1.9 or K1.10 test maquette of RT-15M SLBM

1964, S-72 - under Project 613AD: minor changes

1964, S-65 - under Project 613RV: 1100/1342t, 80.0x6.30x6.40m, /10kts, /10(10)nm, 50m diving depth; 2 - 650 TT (bow, 2), 2 - 533 TT (bow, 2), Vyuga ASuM

1965, S-362 - under Project 3P-613: - Flag radar; + MRP-10 Zaliv-P radar

1966, S-270 - under Project 613Sh: disarmed, many changes intended for ice navigation, also Plutoniy, 2x Arktika, MG-17, MG-25 sonars, VTM-101 underice television system etc.

1966, S-65: + Shkval rocket torpedoes

1967, S-229 - under Project 613D5: - 1 x 1 K1.9 or K1.10 test maquette of RT-15M SLBM; + 1 x 1 4K10 test maquette of R-27 SLBM

1969, S-63: - UPS rescue submersible; + equipment for deepwater diving to 100m depth (decompression chamber etc).

1970s, some boats: - Flag radar; + RLK-101 Albatros radar

1970s, S-86: + wake detector

1972, S-65: + Veter ASuM, Vodopad ASuM

1972, S-149, S-151 - under Project 640Ts: - MR-200 Kasatka radar; + Tsiklon satellite communications system

1974, S-73 - under Project 613RLS: new radar

1989, SS-273 - under Project 613E: + air-independent power-plant; 1285/t, 76.0x7.30x5.00m, 2000/2700/163(AIP)hp, 15/13.1kts, 4000(9)/1700(2.5)nm, compl. 54, 100m max. diving depth; unarmed

1990, S-384 - under Project 61311: new sonar

Naval service: S-80 foundered 27.1.1961 in Barents Sea due to faulty snorkel. S-178 21.10.1981 off Vladivostok was rammed and sunk by refrigerating vessel Refrizherator-13.

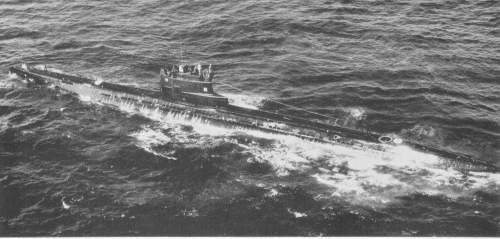

Pr. 613 1979

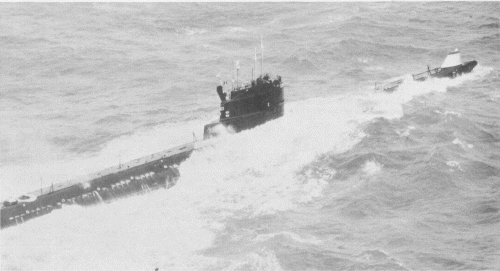

pr. 613 1978

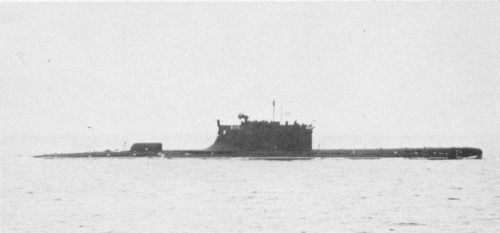

pr. 640Ts 1975

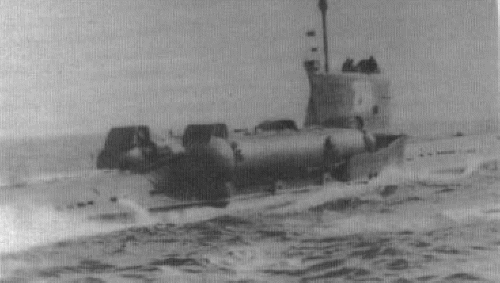

pr. 644 1973
