SOVIET NAVY (USSR)

SUBMARINES

"Series XV" submarines (project 96) (1943-1953)

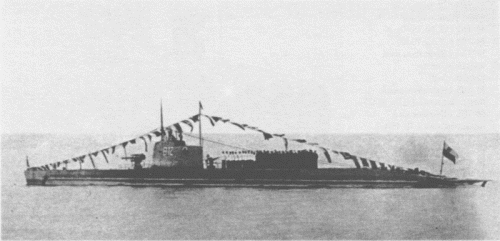

M-200 1943

M-291 1959

Name No Yard No Builder Laid down Launched Comp Fate
Ì-200 [M-200], 6.1943- Ì-200 Ìåñòü [M-200 Mest']   122 196 Yd (Sudomekh Wks), Leningrad // 638 Yd (Stalin Yd), Astrakhan 3.1940 17.7.1941 20.3.1943 collision 12.8.1956
Ì-201 [M-201]   123 196 Yd (Sudomekh Wks), Leningrad // 638 Yd (Stalin Yd), Astrakhan 3.1940 17.7.1941 16.4.1943 stricken 12.1955
Ì-202 Ðûáíèê Äîíáàññà [M-202 Rybnik Donbassa]   138 196 Yd (Sudomekh Wks), Leningrad // 638 Yd (Stalin Yd), Astrakhan 5.1940 15.7.1941 19.2.1944 to Bulgaria 9.1954 (41 Ì-1 [M-1])
Ì-203 Èðêóòñêèé Ðûáàê [M-203 Irkutskiy Rybak]   139 196 Yd (Sudomekh Wks), Leningrad // 638 Yd (Stalin Yd), Astrakhan 10.1940 7.7.1941 28.10.1944 to Bulgaria 9.1954 (42 Ì-2 [M-2])
Ì-204 [M-204]   140 196 Yd (Sudomekh Wks), Leningrad 10.1940 17.7.1946 25.6.1947 to Bulgaria 9.1954 (43 Ì-3 [M-3])
Ì-205 [M-205]   141 196 Yd (Sudomekh Wks), Leningrad 12.1940 10.11.1946 22.7.1947 stricken 4.1958
Ì-206 [M-206]   142 196 Yd (Sudomekh Wks), Leningrad 12.1940 26.4.1947 30.9.1947 charging plant 1.1958
Ì-207 [M-207]   147 196 Yd (Sudomekh Wks), Leningrad 7/1941 --- --- cancelled 1941
Ì-208 [M-208]   148 196 Yd (Sudomekh Wks), Leningrad 7/1941 --- --- cancelled 1941
Ì-209 [M-209]   149 196 Yd (Sudomekh Wks), Leningrad 7/1941 --- --- cancelled 1941
Ì-214 [M-214]   113/306 112 Yd (Krasnoye Sormovo Yd), Gorkiy // 402 Yd, Molotovsk 5.1941 24.9.1946 14.8.1948 stricken 2.1959
Ì-215 [M-215]   114/307/289 112 Yd (Krasnoye Sormovo Yd), Gorkiy // 402 Yd, Molotovsk // 196 Yd (Sudomekh Wks), Leningrad 4.1941 22.7.1947 31.10.1947 stricken 2.1960
Ì-216 [M-216]   115/308/290 112 Yd (Krasnoye Sormovo Yd), Gorkiy // 402 Yd, Molotovsk // 196 Yd (Sudomekh Wks), Leningrad 4.1941 26.7.1947 5.11.1947 charging plant 2.1960
Ì-217 [M-217]   116/309 112 Yd (Krasnoye Sormovo Yd), Gorkiy // 402 Yd, Molotovsk // 196 Yd (Sudomekh Wks), Leningrad 4.1941 26.7.1947 10.11.1947 stricken 2.1960
Ì-218 [M-218]   117/310 112 Yd (Krasnoye Sormovo Yd), Gorkiy // 402 Yd, Molotovsk // 196 Yd (Sudomekh Wks), Leningrad 4.1941 10.9.1947 10.11.1947 stricken 2.1960
Ì-219 [M-219]   118/311 112 Yd (Krasnoye Sormovo Yd), Gorkiy // 402 Yd, Molotovsk 4.1941 --- --- cancelled 7.1946
Ì-234 [M-234]   353 112 Yd (Krasnoye Sormovo Yd), Gorkiy // 196 Yd (Sudomekh Wks), Leningrad 6.1941 25.4.1948 31.7.1948 stricken 4.1958
Ì-235 [M-235]   354 112 Yd (Krasnoye Sormovo Yd), Gorkiy // 196 Yd (Sudomekh Wks), Leningrad 6.1941 25.4.1948 25.8.1948 stricken 2.1960
Ì-236 [M-236]   355 112 Yd (Krasnoye Sormovo Yd), Gorkiy // 196 Yd (Sudomekh Wks), Leningrad 19.2.1947 19.6.1948 19.10.1948 to Poland 4.1954 (M102 Krakowiak)
Ì-237 [M-237]   373 112 Yd (Krasnoye Sormovo Yd), Gorkiy // 196 Yd (Sudomekh Wks), Leningrad 15.3.1947 27.7.1948 29.11.1948 charging plant 11.1960
Ì-238 [M-238]   374 112 Yd (Krasnoye Sormovo Yd), Gorkiy // 196 Yd (Sudomekh Wks), Leningrad 25.4.1947 21.8.1948 7.12.1948 stricken 2.1960
Ì-239 [M-239]   375 196 Yd (Sudomekh Wks), Leningrad 7.6.1947 2.10.1948 14.7.1949 stricken 11.1960
Ì-240 [M-240]   376 196 Yd (Sudomekh Wks), Leningrad 27.8.1948 22.11.1948 30.7.1949 stricken 11.1960
Ì-241 [M-241]   377 196 Yd (Sudomekh Wks), Leningrad 31.8.1948 30.12.1948 30.7.1949 stricken 4.1958
Ì-242 [M-242]   378 196 Yd (Sudomekh Wks), Leningrad 30.9.1948 30.3.1949 30.7.1949 stricken 2.1960
Ì-243 [M-243]   379 196 Yd (Sudomekh Wks), Leningrad 31.10.1948 30.4.1949 31.8.1949 charging plant 2.1960
Ì-244 [M-244]   380 196 Yd (Sudomekh Wks), Leningrad 24.11.1948 1.6.1949 1.10.1949 charging plant 2.1960
Ì-245 [M-245]   381 196 Yd (Sudomekh Wks), Leningrad 30.11.1948 30.6.1949 31.10.1949 to Poland 4.1955 (M104 Kujawiak)
Ì-246 [M-246]   382 196 Yd (Sudomekh Wks), Leningrad 25.1.1949 24.7.1949 16.11.1949 to Poland 4.1955 (M105 Kurp)
Ì-247 [M-247]   383 196 Yd (Sudomekh Wks), Leningrad 14.2.1949 31.8.1949 22.11.1949 charging plant 11.1960
Ì-248 [M-248]   384 196 Yd (Sudomekh Wks), Leningrad 24.2.1949 26.9.1949 23.11.1949 stricken 2.1960
Ì-249 [M-249]   385 196 Yd (Sudomekh Wks), Leningrad 25.4.1949 30.10.1949 31.12.1949 stricken 2.1960
Ì-250 [M-250]   386 196 Yd (Sudomekh Wks), Leningrad 28.6.1949 28.11.1949 2.6.1950 stricken 11.1960
Ì-251 [M-251]   387 196 Yd (Sudomekh Wks), Leningrad 23.9.1949 22.12.1949 25.6.1950 stricken 2.1960
Ì-252 [M-252]   388 196 Yd (Sudomekh Wks), Leningrad 22.10.1949 26.3.1950 10.7.1950 stricken 2.1960
Ì-253 [M-253]   389 196 Yd (Sudomekh Wks), Leningrad 9.11.1949 30.3.1950 29.7.1950 stricken 2.1961
Ì-270 [M-270]   500 196 Yd (Sudomekh Wks), Leningrad 23.12.1949 24.4.1950 29.7.1950 to Poland 12.1954 (M103 Ślązak)
Ì-271 [M-271]   501 196 Yd (Sudomekh Wks), Leningrad 31.1.1950 30.4.1950 28.8.1950 to Egypt 6.1957 (name unknown)
Ì-272 [M-272]   502 196 Yd (Sudomekh Wks), Leningrad 25.2.1950 13.6.1950 11.9.1950 charging plant 11.1960
Ì-273 [M-273]   503 196 Yd (Sudomekh Wks), Leningrad 18.3.1950 20.7.1950 28.9.1950 stricken 5.1963
Ì-274 [M-274]   504 196 Yd (Sudomekh Wks), Leningrad 29.4.1950 18.9.1950 31.10.1950 to Poland 7.1954 (M101 Mazur)
Ì-275 [M-275]   505 196 Yd (Sudomekh Wks), Leningrad 25.5.1950 23.9.1950 15.11.1950 stricken 2.1961
Ì-276 [M-276]   506 196 Yd (Sudomekh Wks), Leningrad 28.6.1950 17.10.1950 25.12.1950 to China 12.1954 (长城 200 [Changcheng 200])
Ì-277 [M-277]   507 196 Yd (Sudomekh Wks), Leningrad 31.7.1950 1950/51 24.5.1951 to China 12.1954 (长城 201 [Changcheng 201])
Ì-278 [M-278]   508 196 Yd (Sudomekh Wks), Leningrad 31.8.1950 19.1.1951 28.5.1951 to China 7.1955 (长城 202 [Changcheng 202])
Ì-279 [M-279]   509 196 Yd (Sudomekh Wks), Leningrad 12.10.1950 10.2.1951 9.6.1951 to China 7.1955 (长城 203 [Changcheng 203])
Ì-280 [M-280]   510 196 Yd (Sudomekh Wks), Leningrad 20.12.1950 14.4.1951 21.7.1951 stricken 2.1961
Ì-281 [M-281]   619 196 Yd (Sudomekh Wks), Leningrad 4.2.1951 29.4.1951 23.8.1951 stricken 12.1966
Ì-282 [M-282]   620 196 Yd (Sudomekh Wks), Leningrad 11.3.1951 12.6.1951 14.9.1951 stricken 12.1966
Ì-283 [M-283]   621 196 Yd (Sudomekh Wks), Leningrad 2.4.1951 3.7.1951 30.9.1951 stricken 1.1963
Ì-284 [M-284]   622 196 Yd (Sudomekh Wks), Leningrad 3.5.1951 11.8.1951 31.10.1951 stricken 5.1963
Ì-285 [M-285]   623 196 Yd (Sudomekh Wks), Leningrad 31.5.1951 14.9.1951 12.2.1952 stricken 2.1961
Ì-286 [M-286]   624 196 Yd (Sudomekh Wks), Leningrad 29.6.1951 15.10.1951 25.6.1952 stricken 2.1961
Ì-287 [M-287]   625 196 Yd (Sudomekh Wks), Leningrad 25.6.1951 15.11.1951 25.6.1952 stricken 11.1962
Ì-288 [M-288]   626 196 Yd (Sudomekh Wks), Leningrad 24.8.1951 24.1.1952 24.7.1952 stricken 5.1963
Ì-289 [M-289]   627 196 Yd (Sudomekh Wks), Leningrad 27.9.1951 28.4.1952 27.8.1952 stricken 5.1963
Ì-290 [M-290]   628 196 Yd (Sudomekh Wks), Leningrad 10.11.1951 27.5.1952 30.9.1952 to Poland 7.1954 (M100 Kaszub)
Ì-291 [M-291]   629 196 Yd (Sudomekh Wks), Leningrad 28.12.1951 1.7.1952 25.11.1952 stricken 11.1960
Ì-292 [M-292]   644 196 Yd (Sudomekh Wks), Leningrad 15.4.1952 30.9.1952 12.1.1953 stricken 5.1963
Ì-293 [M-293]   645 196 Yd (Sudomekh Wks), Leningrad 10.2.1952 2.10.1952 12.1.1953 stricken 11.1960
Ì-294 [M-294]   646 196 Yd (Sudomekh Wks), Leningrad 29.5.1952 22.10.1952 26.2.1953 stricken 11.1960



Displacement standard, t



Displacement normal, t

280 / 351

Length, m

49.5

Breadth, m

4.40

Draught, m

2.81

No of shafts

2

Machinery

2 11D diesels / 2 PG-17 electric motors

Power, h. p.

1200 / 430

Max speed, kts

15.5 / 7.9

Fuel, t

diesel oil 14
Endurance, nm(kts) 4500(8) / 85(2.9)

Armament

M200-203: 1 x 1 - 45/43 21K, 4 - 533 TT (bow, 4)

others: 1 x 1 - 45/46 21K, 4 - 533 TT (bow, 4)
Electronic equipment Mars-8 hydrophone

Complement

23

Diving depth operational, m

60

Project history: The basic requirements to small submarine which working out has begun in III five-years period, were installation of the second shaft and increasing twice of a torpedo salvo. Displacement growth on 35% became a payment. The saddle-tank construction with demountable bulges has been applied to preserve of possibility of transportation by rail. The stability was improved, surfaced speed has grown on 1.5kts, and diving depth on 10m. Project of XV series was approved 23.7.1939.

Modernizations: 1957, all survived: - 1 x 1 - 45/46.

Naval service: M-200 Mest' collided 12.8.1956 with destroyer Statnyy at Tallin and sunk with all hands, salvaged 21.11.1956 and used as training hulk till 1958.
