Morzh 1916
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Морж [Morzh] | Baltic Wks, Nikolayev | 7.1911 | 28.9.1913 | 4.1915 | lost 11-15.5.1917 | ||
| Нерпа [Nerpa], 12.1922- Политрук [Politruk] | 11 | Baltic Wks, Nikolayev | 7.1911 | 1.11.1913 | 3.1915 | captured by Austria-Hungary 17.3.1918, to Whites 8.1919, re-captured 1.1920, commissioned by Red Fleet 6.1923, stricken 11.1930 | |
| Тюлень [Tyulen'] | Baltic Wks, Nikolayev | 7.1911 | 1.11.1913 | 3.1915 | captured by Germany 1.5.1918, to Whites 12.1918, interned by France 12.1920 |
|
Displacement standard, t |
|
|
Displacement normal, t |
Morzh, Tyulen': 630 / 790 Nerpa: 642 / 773 |
|
Length, m |
Morzh, Tyulen': 68.4 Nerpa: 67.4 |
|
Breadth, m |
Morzh, Tyulen': 4.48 Nerpa: 4.42 |
|
Draught, m |
Morzh, Tyulen': 3.90 Nerpa: 3.96 |
|
No of shafts |
2 |
|
Machinery |
2 Nobel diesels / 2 electric motors |
|
Power, h. p. |
500 / 900 |
|
Max speed, kts |
10.8 / 8 |
|
Fuel, t |
diesel oil 54 |
| Endurance, nm(kts) | 2600(10) / 125(6) |
|
Armament |
Morzh, Nerpa: 1 x 1 - 57/40 Hotchkiss, 1 x 1 - 47/40 Hotchkiss, 12 - 450 TT (2 bow, 2 stern, 8 side drop-collars, 14) Tyulen': 1 x 1 - 75/48 Canet, 1 x 1 - 57/40 Hotchkiss, 12 - 450 TT (2 bow, 2 stern, 8 side drop-collars, 14) |
|
Complement |
47 |
|
Diving depth operational, m |
45 |
Project history: Design of I. G. Bubnov. Single-hulled, without watertight bulkheads, development of Akula. Under original design it was supposed to equip them with 2 1140hp diesels, that should ensure 19kts surface speed. However it was necessary to install diesels removed from Amur flotilla gunboats.
Modernizations: 1917, Tyulen': - 8 - 450 TC; + 1 x 1 - 37/20 Hotchkiss, 4 - 450 TT (ext)
1923, Politruk: - 1 x 1 - 57/40, 1 x 1 - 47/40, 8 - 450 TC; + 2 x 1 - 75/48 Canet
Naval service: Morzh was lost in Black Sea 11-15.5.1917 for unknown cause. Tyulen' was withdrawn by Whites to Bizerte where she was broken up in mid-1930s. Nerpa entered service with Red Navy, but was stricken on technical condition.

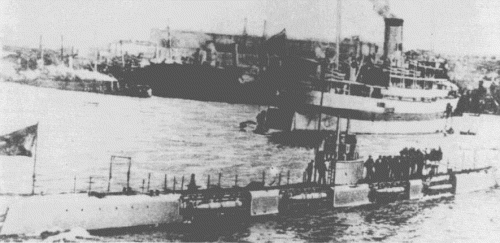

Tyulen'

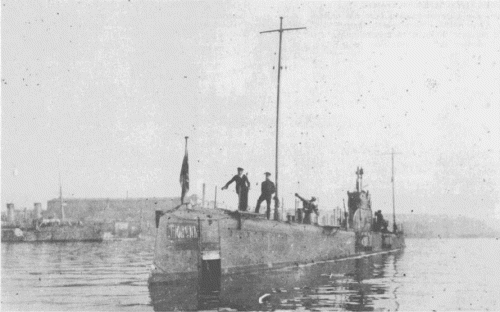

Morzh
