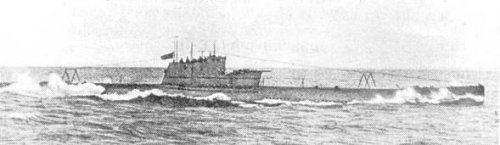

L-3 1941
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Ленинец [Leninets], 9.1934- Л-1 [L-1] | 195 | 189 Yd (Ordzhonikidze Yd), Leningrad | 9.1929 | 28.2.1931 | 10.1933 | sunk 9.11.1941 | |
| Сталинец [Stalinets] (ex-Марксист [Marxist]), 9.1934- Л-2 [L-2] | 196 | 189 Yd (Ordzhonikidze Yd), Leningrad | 9.1929 | 21.5.1931 | 10.1933 | sunk 14.11.1941 | |
| Фрунзовец [Frunzovets] (ex-Большевик [Bolshevik]), 9.1934- Л-3 [L-3], 6.1949- Б-3 [B-3] | 197 | 189 Yd (Ordzhonikidze Yd), Leningrad | 9.1929 | 8.7.1931 | 11.1933 | training hulk 5.1956 | |
| Гарибальдиец [Garibaldiets], 9.1934- Л-4 [L-4], 6.1949- Б-34 [B-34] | 31/201 | 198 Yd (Marti Yd), Nikolayev | 3.1930 | 31.8.1931 | 10.1933 | stricken 2.1956 | |
| Чартист [Chartist], 9.1934- Л-5 [L-5], 6.1949- Б-35 [B-35] | 32/202 | 198 Yd (Marti Yd), Nikolayev | 3.1930 | 5.6.1932 | 10.1933 | stricken 12.1955 | |
| Л-6 [L-6] (ex-Карбонарий [Karbonariy]) | 33/203 | 198 Yd (Marti Yd), Nikolayev | 4.1930 | 3.11.1932 | 5.1935 | sunk 16-19.4.1944 |
|
Displacement standard, t |
|
|
Displacement normal, t |
Leninets, Stalinets: 1040 / 1335 Frunzovets: 1051 / 1327 Garibaldiets, Chartist, L-6: 1038 / 1330 |
|
Length, m |
78.0 Garibaldiets: 78.5 |
|
Breadth, m |
Leninets, Stalinets: 7.30 Frunzovets, Garibaldiets, L-6: 7.20 Chartist: 7.00 |
|
Draught, m |
Leninets, Stalinets, Frunzevets: 4.01 Garibaldiets, L-6: 4.20 Chartist: 4.25 |
|
No of shafts |
2 |
|
Machinery |
2 42BM6 diesels / 2 PG84/50 electric motors |
|
Power, h. p. |
2200 / 1300 |
|
Max speed, kts |
Leninets, Stalinets, Frunzevets: 14.8 / 8.5 Garibaldiets: 12.5 / 8.2 Chartist: 13.8 / 8.3 L-6: 11.3 / 8 |
|
Fuel, t |
diesel oil 102 |
| Endurance, nm(kts) | 6000(10) / 135(2.5) |
|
Armament |
Leninets, Stalinets: 1 x 1 - 102/43 B-2, 1 x 1 - 45/43 21K, 6 - 533 TT (bow, 12), 17 mines Frunzevets, Chartist: 1 x 1 - 102/43 B-2, 1 x 1 - 45/43 21K, 6 - 533 TT (bow, 12), 20 mines Garibaldiets, L-6: 1 x 1 - 102/43 B-2, 6 - 533 TT (bow, 12), 20 mines |
| Electronic equipment | Merkuriy or Mars-A or Mars-DM or Mars-ShM hydrophone |
|
Complement |
54 - 55 |
|
Diving depth operational, m |
75 |
Project history: Submarines of "combined"
type storing powerful torpedo armament at ability to laid mines. In
construction experience of building of D class submarines
was used, and also decisions borrowed from raised British subarine L55.
Saddle-tank hull. Mines were carried in two horizontal watertight
tubes and laid astern.
Submarines of II series were built for Baltic and Black Seas.
Maximal diving depth was 90 m.
Modernizations: 1939, L-1; 1941, L-2, L-3; 1945, L-5: CT was rebuilt; - 1 x 1 - 102/43; + 1 x 1 - 100/49 B-24
1940-1941, all: - hydrophone; + Mars-16 hydrophone
1941, L-6: CT was rebuilt; - 1 x 1 - 102/43; + 1 x 1 - 100/49 B-24, 1 x 1 - 45/43 21K
1943, L-3: + type 129 sonar
Naval service: L-1 was sunk 9.11.1941 by German field guns in port of Leningrad. Later she was salvaged but never repaired and stricken in July, 1945. L-2 was lost 14.11.1941 on mines at island Keri. L-6 was lost between 11 and 21.4.1944 in NW part of Black sea; probably, on a mine or was sunk 16.4.1944 by German submarine chaser UJ115 or 18.4.1944 by UJ104 and Romanian gunboat Sublocotenent Ghigulescu.
