Kasatka 1906
Kasatka 1914
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Касатка [Kasatka] | Baltic Wks, St. Petersburg | 3.1904 | 7.7.1904 | 3.1905 | stricken 11.1925 | ||
| Макрель [Makrel`] | Baltic Wks, St. Petersburg | 4.1904 | 27.8.1904 | 8.1908 | stricken 11.1925 | ||
| Налим [Nalim] | Baltic Wks, St. Petersburg | 4/1904 | 8.9.1904 | 5.1905 | captured by Germany 1.5.1918 | ||
| Окунь [Okun`] | Baltic Wks, St. Petersburg | 4.1904 | 13.9.1904 | 7.1908 | stricken 11.1925 | ||
| Скат [Skat] | Baltic Wks, St. Petersburg | 3.1904 | 3.9.1904 | 4.1905 | captured by Germany 1.5.1918 | ||
| Фельдмаршал Граф Шереметьев [Feldmarshal Graf Sheremetyev], 8.1917- Кета [Keta] | Baltic Wks, St. Petersburg | spring 1904 | 21.8.1904 | 5.1905 | foundered 23.9.1924 |
|
Displacement standard, t |
|
|
Displacement normal, t |
140 - 142 / 177 |
|
Length, m |
33.4 |
|
Breadth, m |
3.39 |
|
Draught, m |
2.80 |
|
No of shafts |
Kasatka, Nalim, Skat, Feldmarshal Graf Sheremetyev, Okun': 1 Makrel: 3 |
|
Machinery |
Kasatka, Nalim, Skat, Feldmarshal Graf Sheremetyev, Okun': 2 kerosine dynamo machines, 1 electric motor Makrel: 2 kerosine engines / 1 electric motor |
|
Power, h. p. |
Kasatka, Nalim, Skat, Feldmarshal Graf Sheremetyev, Okun': 100 Makrel: 120 / 100 |
|
Max speed, kts |
Kasatka, Nalim, Skat, Feldmarshal Graf Sheremetyev, Okun': 14 / 8.5 Makrel: 9 / 8.5 |
|
Fuel, t |
kerosene 4.8 |
| Endurance, nm(kts) | 1200(7) / 70(5) |
|
Armament |
4 - 450 TT (side drop-collars, 4) |
|
Complement |
24 |
| Diving depth operational, m | 50 (max) |
Project history: Design of I. G. Bubnov. Single-hulled, without watertight bulkheads. Okun ` and Makrel ` under original project should have 3 petrol motors for surface trim, but because of their absence completion was delayed. Finally diesels working with electric motors on one shaft were installed. Kasatka, Nalim, Skat and Graf Sheremetev were completed under original project.
Modernizations: 1911, Makrel': 2 shafts were removed, new power plant consisted of 1 diesel / 1 electric motor (120 / 100hp, 9.5kts, 2.6t of diesel oil), large bridge amidships was fitted.
1911, Okun': kerosine dynamo machines were replaced by 1 diesel (120/100hp)
1910s, Kasatka, Feldmarshal Graf Sheremetyev: + 1 x 1 - 7.6/94
1915, Nalim, Skat: + 1 x 1 - 47/40 Hotchkiss
Naval service: Skat and Nalim were scuttled by British-French troops off Sevastopol. Nalim was raised in 1932 and broken up. Keta 23.9.1924 was foundered by flood at Kronshtadt, later wreck was raised and broken up.

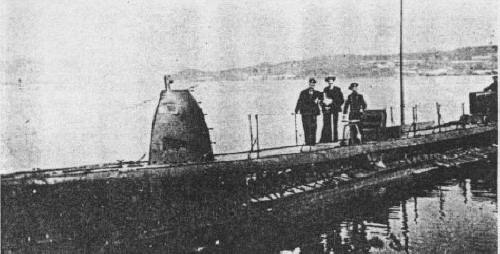

Kasatka 1905
