K-51 IMENI XXVI S'YEZDA KPSS nuclear powered ballistic missile submarines (project 667BDRM) (1984 - 1990)

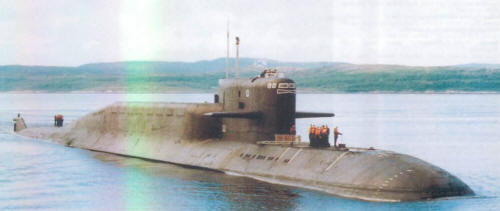

K-51 Verkhoturye 2000
BS-64 Podmoskovye 2016
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| К-51 имени XXVI съезда КПСС [K-51 Imeni XXVI S'yezda KPSS], 6.1992- К-51 [K-51], 2.1999- К-51 Верхотурье [K-51 Verkhoturye] | 818 | 379 | Northern Yd, Severodvinsk | 23.2.1981 | 7.3.1984 | 28.12.1984 | in service (2019) |
| К-84 [K-84], 2.1999- К-84 Екатеринбург [K-84 Yekaterinburg] | 829 | 380 | Northern Yd, Severodvinsk | 17.2.1982 | 17.3.1985 | 30.12.1985 | in service (2019) |
| К-64 [K-64], 1999- КС-64 [KS-64], 2000- БС-64 [BS-64], 2008- БС-64 Подмосковье [BS-64 Podmoskovye] | 855 | 381 | Northern Yd, Severodvinsk | 18.12.1982 | 2.2.1986 | 23.12.1986 | in service (2019) |
| К-114 [K-114], 8.1997- К-114 Тула [K-114 Tula] | 805 | 382 | Northern Yd, Severodvinsk | 22.2.1984 | 22.1.1987 | 30.10.1987 | in service (2019) |
| К-117 [K-117], 1.1998- К-117 Брянск [K-117 Briansk] | 820 | 383 | Northern Yd, Severodvinsk | 20.4.1985 | 8.2.1988 | 30.9.1988 | in service (2019) |
| К-18 [K-18], 9.1996- К-18 Карелия [K-18 Kareliya] | 804 | 384 | Northern Yd, Severodvinsk | 7.2.1986 | 2.2.1989 | 10.10.1989 | in service (2019) |
| К-407 [K-407], 6.1997- К-407 Новомосковск [K-407 Novomoskovsk] | 849 | 385 | Northern Yd, Severodvinsk | 2.2.1987 | 28.2.1990 | 27.11.1990 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement normal, t |
11740 / 18200 |
|
Length, m |
166.3 |
|
Breadth, m |
11.7 hull 19.0 max |
|
Draught, m |
10.5 |
|
No of shafts |
2 |
|
Machinery |
2 TZA-635 geared steam turbines units, 2 OK-700A nuclear reactors |
|
Power, h. p. |
40000 |
|
Max speed, kts |
15.3 / 24 |
|
Fuel, t |
nuclear |
|
Endurance, nm(kts) |
practically unlimited |
|
Armament |
16 R-29RM SLBM (16 R-29RM (3M37)), 4 - 533 TT (bow, 12, inc. URPK-6 Vodopad-PL SSM/ASuM (83R, 84R)), 1 x 1 Igla SAM (8 9M39) |
|
Electronic equipment |
MRK-50 Kaskad radar, MGK-520.6 Skat-BDRM sonar suite, MRP-21A ECM suite, MG-74 Korund-2 decoys, MVU-132BDRM Omnibus-BDRM CCS |
|
Complement |
135 |
|
Diving depth operational, m |
320 |
Project history: This is a redesigned pr. 667BDR to R-29RM missiles (hence the 'RM' suffix) with a new sonar. The spherical array squeezes out the 400mm self-defence tubes, and there is a towed array and a flank array.
Modernizations: 2003, K-84 Yekaterinburg; 2006, K-114 Tula; 2008, K-117 Briansk; 2009, K-18 Kareliya; 2012, K-51 Verkhoturye, K-407 Novomoskovsk: - 16 R-29RM SLBM; + 16 R-29RMU2 Sineva SLBM (16 3M37U2)
2016, BS-64 Podmoskovye: under Project 09787: - all armament, MGK-520.6 Skat-BDRM sonar; + Gneys-09787 sonar suite, bow- and stern thrusters, additional living and technical spaces instead of missile compartments, ability to carry Project 10831 or Project 18551 special purpose mini submarine; length oa became 173.0m, displacement 11600 / 15100t
Naval service: No significant events.
Project 667BDRM 2003
