K-424 nuclear powered ballistic missile submarines (project 667BDR) (1976 - 1982)

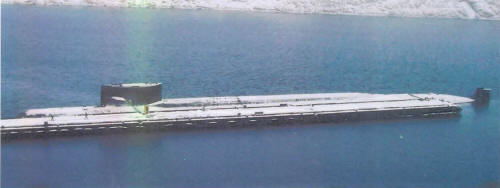

K-424 1990

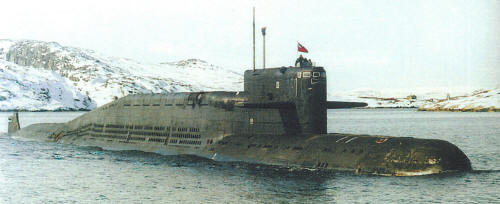

BS-136 Orenburg 2005
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| К-424 [K-424] | 355 | Northern Yd, Severodvinsk | 30.1.1974 | 11.2.1976 | 30.12.1976 | stricken 3.1995 | |
| К-441 [K-441] | 366 | Northern Yd, Severodvinsk | 7.5.1974 | 25.5.1976 | 31.10.1976 | stricken 3.1995 | |
| К-449 [K-449] | 367 | Northern Yd, Severodvinsk | 19.7.1974 | 29.7.1976 | 26.12.1976 | stricken 8.2001 | |
| К-455 [K-455] | 368 | Northern Yd, Severodvinsk | 16.10.1974 | 16.8.1976 | 30.12.1976 | stricken 8.2000 | |
| К-490 [K-490] | 372 | Northern Yd, Severodvinsk | 6.3.1975 | 27.1.1977 | 30.9.1977 | stricken 8.2003 | |
| К-487 [K-487] | 373 | Northern Yd, Severodvinsk | 9.6.1975 | 4.4.1977 | 27.12.1977 | stricken 1998 | |
| К-496 [K-496], 1.1999- К-496 Борисоглебск [K-496 Borisoglebsk] | 392 | Northern Yd, Severodvinsk | 23.9.1975 | 13.8.1977 | 30.12.1977 | stricken 11.2008 | |
| К-506 [K-506], 9.1998- К-506 Зеленоград [K-506 Zelenograd] | 393 | Northern Yd, Severodvinsk | 29.12.1975 | 26.1.1978 | 30.11.1978 | stricken 7.2010 | |
| К-211 [K-211], 9.1998- К-211 Петропавловск-Камчатский [K-211 Petropavlovsk-Kamchatskiy] | 394 | Northern Yd, Severodvinsk | 19.8.1976 | 13.1.1979 | 28.9.1979 | for disposal 2015 | |
| К-223 [K-223], 7.1998- К-223 Подольск [K-223 Podolsk] | 395 | Northern Yd, Severodvinsk | 19.2.1977 | 30.4.1979 | 27.11.1979 | stricken 2016 | |
| К-180 [K-180] | 396 | Northern Yd, Severodvinsk | 27.12.1977 | 8.1.1980 | 25.9.1980 | deleted 2003 | |
| К-433 [K-433], 9.1998- К-433 Святой Георгий Победоносец [K-433 Sviatoy Georgiy Pobedonosets] | 397 | Northern Yd, Severodvinsk | 24.8.1978 | 20.6.1980 | 15.12.1980 | stricken 2017 | |
| К-129 [K-129], 3.1996- КС-129 [KS-129], 2002- БС-136 [BS-136], 2004- БС-136 Оренбург [BS-136 Orenburg] | 656 | 398 | Northern Yd, Severodvinsk | 9.4.1979 | 15.4.1981 | 5.11.1981 | in service (2019) |
| К-44 [K-44], 2.1998- К-44 Рязань [K-44 Riazan'] | 939 | 376 | Northern Yd, Severodvinsk | 31.1.1980 | 19.1.1982 | 17.9.1982 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement normal, t |
10600 / 13700 |
|
Length, m |
157.0 |
|
Breadth, m |
11.9 hull 19.0 max |
|
Draught, m |
8.70 |
|
No of shafts |
2 |
|
Machinery |
2 TZA-635 geared steam turbines units, 2 OK-700 nuclear reactors |
|
Power, h. p. |
40000 |
|
Max speed, kts |
14 / 24 |
|
Fuel, t |
nuclear |
|
Endurance, nm(kts) |
practically unlimited |
|
Armament |
16 R-29R SLBM (16 R-29R (3M40) or R-29RK (3M40K)), 4 - 533 TT (bow, 16, inc. URPK-6 Vodopad-PL SSM/ASuM (83R, 84R)), 2 - 400 TT (bow, 6), 1 x 1 Strela-2M SAM (8 9M32M) |
|
Electronic equipment |
355: MRK-50 Kaskad radar, MGK-100 Kerch' sonar, MRP-10M Zaliv-P ECM suite, MG-44 Korund-1 decoys, Almaz-BDR CCS others: MRK-50 Kaskad radar, MGK-400 Rubikon sonar, MRP-10M Zaliv-P ECM suite, MG-44 Korund-1 decoys, Almaz-BDR CCS |
|
Complement |
130 |
|
Diving depth operational, m |
320 |
Project history: This is pr. 667BD with a higher hump to accommodate the new R-29R missile (the 'R' in the project number). The externally-framed pressure hull is 9.8m in diameter, ie, about the same diameter as the separate pressure hulls in Project 941. The sonar suit, Rubikon, roughly matches that of a pr. 67. Like the attack submarine, this one has a cylindrical array in the forward part of the sail.
Modernizations: 2002, BS-136: under Project 09786: - all armament, MGK-400 Rubikon sonar; + Gneys-09787 sonar suite, bow- and stern thrusters, additional living and technical spaces instead of missile compartments, ability to carry Project 10831 or Project 18551 special purpose mini submarine; length oa became 173.0m, displacement 11600 / 15100t
Naval service: No significant events.

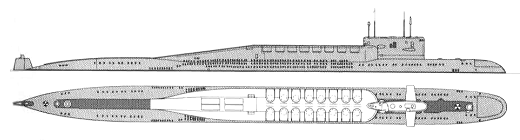

Project 667BDR 2000
BS-136 Orenburg 2006
