K-284 nuclear powered attack submarines (project 971) (1984 - 1995)
K-157 VEPR' nuclear powered attack submarines (project 09711) (1995-2001)
K-152 NERPA nuclear powered attack submarine (project 971I) (2009)

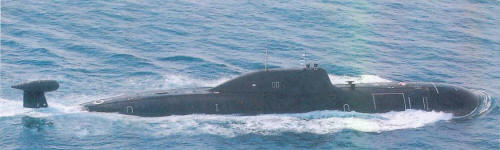

K-157 Vepr' 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Project 971 | |||||||
| К-480 [K-480], 7.1991- К-480 Барс [K-480 Bars], 10.1997- К-480 Ак Барс [K-480 Ak Bars] | 821 | Northern Yd, Severodvinsk | 22.2.1985 | 16.4.1988 | 29.12.1988 | stricken 10.2002 | |
| К-317 Пантера [K-317 Pantera] | 878 | 822 | Northern Yd, Severodvinsk | 6.11.1986 | 21.5.1990 | 27.12.1990 | in service (2019) |
| К-461 Волк [K-461 Volk] | 867 | 831 | Northern Yd, Severodvinsk | 14.11.1987 | 11.6.1991 | 29.12.1991 | in service (2019) |
| К-328 Леопард [K-328 Leopard] | 872 | 832 | Northern Yd, Severodvinsk | 26.10.1988 | 28.6.1992 | 30.12.1992 | in service (2019) |
| К-154 Тигр [K-154 Tigr] | 853 | 833 | Northern Yd, Severodvinsk | 10.9.1989 | 26.6.1993 | 29.12.1993 | in service (2019) |
| К-284 [K-284], 4.1993- К-284 Акула [K-284 Akula] | 501 | Leninskiy Komsomol Yd, Komsomolsk-on-Amur | 11.11.1983 | 27.7.1984 | 30.12.1984 | stricken 12.1995 | |
| К-263 [K-263], 4.1993- К-263 Дельфин [K-263 Delfin], 2.2002- К-263 Барнаул [K-263 Barnaul] | 502 | Leninskiy Komsomol Yd, Komsomolsk-on-Amur | 9.5.1985 | 28.5.1986 | 30.12.1987 | stricken 12.2013 | |
| К-322 [K-322], 4.1993- К-322 Кашалот [K-322 Kashalot] | 985 | 513 | Leninskiy Komsomol Yd, Komsomolsk-on-Amur | 5.9.1986 | 18.7.1987 | 30.12.1988 | awaiting disposal or transfer (2019) |
| К-391 [K-391], 4.1993- К-391 Кит [K-391 Kit], 9.1997- К-391 Братск [K-391 Bratsk] | 990 | 514 | Leninskiy Komsomol Yd, Komsomolsk-on-Amur | 23.2.1988 | 14.4.1989 | 29.12.1989 | in service (2019) |
| К-331 [K-331], 4.1993- К-331 Нарвал [K-331 Narval], 3.2001- К-331 Магадан [K-331 Magadan] | 997 | 515 | Leninskiy Komsomol Yd, Komsomolsk-on-Amur | 28.12.1989 | 23.6.1990 | 23.12.1990 | awaiting disposal (2019) |
| К-419 [K-419], 4.1993- К-419 Морж [K-419 Morzh], 2.1998- К-419 Кузбасс [K-419 Kuzbass] | 951 | 516 | Amur Yd, Komsomolsk-on-Amur | 28.7.1991 | 18.5.1992 | 31.12.1992 | in service (2019) |
| К-295 [K-295], 12.1995- К-295 Дракон [K-295 Drakon], 8.1999- К-295 Самара [K-295 Samara] | 970 | 517 | Amur Yd, Komsomolsk-on-Amur | 7.11.1993 | 5.8.1994 | 17.7.1995 | in service (2019) |
| - | 519 | Amur Yd, Komsomolsk-on-Amur | 1994 | --- | --- | suspended 2007 | |
| Project 09711 | |||||||
| К-157 Вепрь [K-157 Vepr'] | 890 | 834 | Northern Yd, Severodvinsk | 13.7.1990 | 10.12.1994 | 25.11.1995 | in service (2019) |
| К-335 Гепард [K-335 Gepard] | 895 | 835 | Northern Yd, Severodvinsk | 23.9.1991 | 17.9.1999 | 3.12.2001 | in service (2019) |
| К-337 Кугуар [K-337 Kuguar] | 836 | Northern Yd, Severodvinsk | 18.8.1992 | --- | --- | cancelled 1998 | |
| К-333 Рысь [K-333 Rys'] | 837 | Northern Yd, Severodvinsk | 31.8.1993 | --- | --- | cancelled 1997 | |
| Project 971I | |||||||
| К-152 Нерпа [K-152 Nerpa] | 518 | Amur Yd, Komsomolsk-on-Amur | 1993 | 30.6.2006 | 28.10.2009 | to India 4.2012 (चक्र [Chakra]) | |
|
Displacement standard, t |
|
|
Displacement normal, t |
8167 / 10500 |
|
Length, m |
821-833, 501-519: 110.3 834-837: 113.1 |
|
Breadth, m |
13.8 hull 15.4 max |
|
Draught, m |
9.88 |
|
No of shafts |
1 |
|
Machinery |
501, 821: 1 OK-9VM geared steam turbines unit, 1 OK-650M.01 nuclear reactor others: 1 OK-9VM geared steam turbines unit, 1 OK-650VM nuclear reactor |
|
Power, h. p. |
50000 |
|
Max speed, kts |
11.2 / 33.3 |
|
Fuel, t |
nuclear |
|
Endurance, nm(kts) |
practically unlimited |
|
Armament |
pr. 971, 09711: 4 - 650 TT (12, inc. URPK-7 Veter SSM/ASuM (86R, 88R)), 4 - 533 TT (28, inc. Granat CruM (3M10), URPK-6 Vodopad-PL SSM/ASuM (83R, 84R), VA-111 Shkval rocket torpedoes), 1 x 1 Strela-3M SAM (16 9M36) pr. 971I: 4 - 650 TT (0), 4 - 533 TT (36, inc. Club-S SSM), 1 x 1 Strela-3M SAM (16 9M36) |
|
Electronic equipment |
501, 502: MRKP-58 Radian radar, MGK-540 Skat-3 sonar suite, MG-519 Arfa, MG-512 Vint-M sonars, MRP-21A ECM suite, MG-74 Korund-2 decoys, MVU-132 Omnibus CCS 821-830, 503-513: MRKP-58 Radian radar, MGK-540 Skat-3 sonar suite, MG-519 Arfa, MG-512 Vint-M sonars, MNK-200 Tukan wake detector, MRP-21A ECM suite, MG-74 Korund-2 decoys, MVU-132 Omnibus CCS 831-837, 514-516: MRKP-58 Radian radar, MGK-540 Skat-3 sonar suite, MG-519 Arfa, MG-512 Vint-M sonars, MNK-200 Tukan wake detector, MRP-21A ECM suite, 6 REPS-324 Shlagbaum decoy launchers, MVU-132 Omnibus CCS 831-837, 517-519: MRKP-59 Radian-U radar, MGK-540 Skat-3 sonar suite, MG-519 Arfa, MG-512 Vint-M sonars, MNK-200 Tukan wake detector, MRP-21A ECM suite, 6 REPS-324 Shlagbaum decoy launchers, MVU-132 Omnibus CCS |
|
Complement |
73 |
|
Diving depth operational, m |
480 |
Project history: Despite its apparent attack submarine appearance, this submarine was intended primarily as an Granat CruM platform. Steel-hulled Project 971 is far less expensive than the titanium Project 945, so it is being produced as a general-purpose submarine. Submarines are fully automated, have an escape sphere, all machinery is mounted on two-level rafts. Sections of incomplete Kuguar and Rys' and stricken Ak Bars were used for building of Project 955 strategic submarines. Nerpa was completed on Indian funds under Indian order with simplfied armament and leased by India as Chakra.
Modernizations: 2019, K-328 Leopard; planned, K-461 Volk, K-391 Bratsk, K-295 Samara: as project 09717 - MRKP-58 Radian radar, MGK-540 Skat-3 sonar suite; + ability to carry Kalibr-PL CruM (3M14K) / Kalibr-PL SSM (3M54K), R-43-0971 radar, MGK-540M Kizhuch-971M sonar suite
Naval service: No significant events.

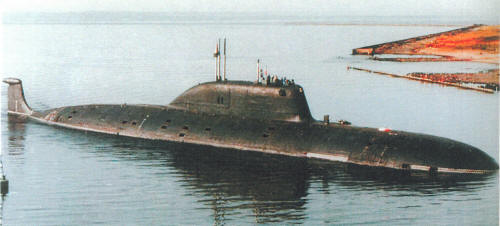

K-419 Kuzbass 2007
K-335 Gepard 2002
