K-166 nuclear powered cruise missile submarines (project 675) (1963 - 1968)

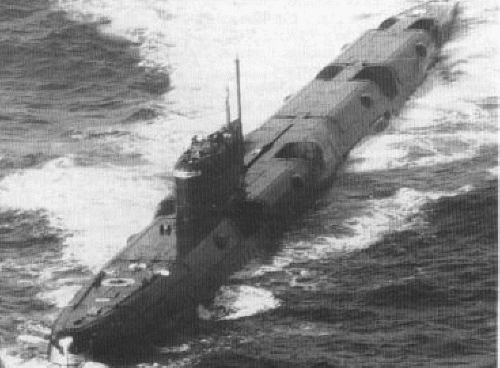

K-166 1963

K-1 1990

K-35 1990

Name No Yard No Builder Laid down Launched Comp Fate
Ê-166 [K-166], 1.1978- Ê-71 [K-71]   530 Northern Wks, Severodvinsk 30.5.1961 6.9.1962 31.10.1963 stricken 5.1989
Ê-104 [K-104]   531 Northern Wks, Severodvinsk 11.1.1962 16.6.1963 15.12.1963 stricken 4.1990
Ê-170 [K-170], 1.1978- Ê-86 [K-86], 4.1985- ÊÑ-86 [KS-86]   532 Northern Wks, Severodvinsk 16.5.1962 4.8.1963 26.12.1963 stricken 6.1991
Ê-172 [K-172], 1.1978- Ê-192 [K-192]   533 Northern Wks, Severodvinsk 8.8.1962 25.12.1963 30.7.1964 stricken 4.1990
Ê-47 [K-47], 1.1994- Á-47 [B-47]   534 Northern Wks, Severodvinsk 7.8.1962 10.2.1964 31.8.1964 stricken 6.1994
Ê-1 [K-1], 6.1992- Á-1 [B-1]   535 Northern Wks, Severodvinsk 11.1.1963 30.4.1964 30.9.1964 stricken 7.1992
Ê-28 [K-28], 7.1977- Ê-428 [K-428]   536 Northern Wks, Severodvinsk 26.4.1963 30.6.1964 16.12.1964 stricken 4.1990
Ê-74 [K-74]   537 Northern Wks, Severodvinsk 23.7.1963 30.9.1964 30.7.1965 stricken 12.1991
Ê-22 [K-22], 10.1967- Ê-22 Êðàñíîãâàðäååö [K-22 Krasnogvardeets], 6.1992- Ê-22 [K-22], 7.1994- Á-22 [B-22]   538 Northern Wks, Severodvinsk 14.10.1963 29.11.1964 7.8.1965 stricken 10.1994
Ê-35 [K-35], 6.1992- Á-35 [B-35]   539 Northern Wks, Severodvinsk 6.1.1964 27.1.1965 30.6.1965 stricken 6.1993
Ê-90 [K-90], 7.1977- Ê-111 [K-111]   540 Northern Wks, Severodvinsk 29.2.1964 17.4.1965 25.9.1965 stricken 3.1989
Ê-116 [K-116]   541 Northern Wks, Severodvinsk 8.6.1964 19.6.1965 29.10.1965 stricken 9.1985
Ê-125 [K-125]   542 Northern Wks, Severodvinsk 1.9.1964 11.9.1965 18.12.1965 stricken 6.1991
Ê-128 [K-128], 7.1977- Ê-62 [K-62]   543 Northern Wks, Severodvinsk 29.10.1964 30.12.1965 25.8.1966 stricken 4.1990
Ê-131 [K-131], 6.1992- Á-131 [B-131]   544 Northern Wks, Severodvinsk 31.12.1964 6.6.1966 30.9.1966 stricken 7.1994
Ê-135 [K-135], 7.1977- Ê-235 [K-235]   545 Northern Wks, Severodvinsk 27.2.1965 27.7.1966 25.11.1966 stricken 3.1989
Ê-175 [K-175]   171 Leninskiy Komsomol Wks, Komsomolsk-on-Amur 17.3.1962 30.9.1962 30.12.1963 stricken 4.1990
Ê-184 [K-184]   172 Leninskiy Komsomol Wks, Komsomolsk-on-Amur 2.2.1963 25.8.1963 31.3.1964 stricken 4.1990
Ê-189 [K-189], 1.1978- Ê-144 [K-144]   173 Leninskiy Komsomol Wks, Komsomolsk-on-Amur 6.4.1963 9.5.1964 24.7.1965 stricken 6.1991
Ê-57 [K-57], 7.1977- Ê-557 [K-557], 4.1992- Á-557 [B-557]   174 Leninskiy Komsomol Wks, Komsomolsk-on-Amur 19.10.1963 26.9.1964 31.10.1965 stricken 7.1992
Ê-31 [K-31], 7.1977- Ê-431 [K-431]   175 Leninskiy Komsomol Wks, Komsomolsk-on-Amur 11.1.1964 8.9.1964 30.9.1965 stricken 9.1987
Ê-48 [K-48]   176 Leninskiy Komsomol Wks, Komsomolsk-on-Amur 11.4.1964 16.6.1965 31.12.1965 stricken 4.1990
Ê-56 [K-56], 4.1992- Á-56 [B-56]   177 Leninskiy Komsomol Wks, Komsomolsk-on-Amur 30.5.1964 10.8.1965 26.8.1966 stricken 7.1992
Ê-10 [K-10]   178 Leninskiy Komsomol Wks, Komsomolsk-on-Amur 24.10.1964 29.9.1965 15.10.1966 stricken 5.1989
Ê-94 [K-94], 7.1977- Ê-204 [K-204], 4.1992- Á-204 [B-204]   179 Leninskiy Komsomol Wks, Komsomolsk-on-Amur 20.3.1965 20.5.1966 27.12.1966 stricken 7.1992
Ê-108 [K-108]   180 Leninskiy Komsomol Wks, Komsomolsk-on-Amur 24.7.1965 26.8.1966 31.3.1967 stricken 4.1990
Ê-7 [K-7], 7.1977- Ê-127 [K-127]   181 Leninskiy Komsomol Wks, Komsomolsk-on-Amur 6.11.1965 25.9.1966 30.9.1967 stricken 4.1990
Ê-23 [K-23]   182 Leninskiy Komsomol Wks, Komsomolsk-on-Amur 23.2.1966 18.6.1967 30.12.1967 stricken 6.1991
Ê-34 [K-34], 7.1977- Ê-134 [K-134], 4.1992- Á-134 [B-134]   183 Leninskiy Komsomol Wks, Komsomolsk-on-Amur 18.6.1966 23.9.1967 30.12.1968 stricken 7.1994


Displacement standard, t



Displacement normal, t

4500 / 5760

Length, m

115.4

Breadth, m

9.30

Draught, m

6.70

No of shafts

2

Machinery

2 VM-A nuclear reactors, 2 GTZA-601 geared steam turbines units

Power, h. p.

35000

Max speed, kts

14 / 22.7

Fuel, t

nuclear

Endurance, nm(kts)

practically unlimited

Armament

to 1965: 4 x 2 P-5D CruM (8 P-5D), 4 - 533 TT (bow, 10), 2 - 400 TT (stern, 6)

after 1965: 4 x 2 P-6 or P-6M CruM (8 4K88 or 4K48), 4 - 533 TT (bow, 10), 2 - 400 TT (stern, 6)

Electronic equipment

RLK-101 Albatros, Argument radars, MG-200 Arktika-M, Plutoniy, MG-10 Kola, MG-13 sonars, Nakat ECM suite

Complement

104

Diving depth operational, m

240

Project history: This was a Project 659 lengthened 5m to accommodate mid-course guidance antennas (for anti-ship attack) and another pair of P-5 launchers.

Modernizations: 1965, all earlier boats were rearmed with P-6 or P-6M missiles

1969-1975, some boats: - MG-200 Arktika-M sonar; + MGK-100 Kerch' sonar

1970, K-170 - under Project 675N: - 8 P-6/P-6M SSM, Argon radar; + diving equipment, divers

1974, K-47, K-125 - under Project 675K: - MG-200 Arktika sonar, Nakat ECM suite; + MGK-100 Kerch' sonar, Nakat-M ECM suite, Kasatka-B satellite guidance system

1975, K-28 - under Project 675MU: - 8 P-6/P-6M SSM, Argon radar, MG-200 Arktika sonar, Nakat ECM suite; + 4 x 2 P-500 Bazalt SSM (8 4K80), Argon-K radar, MGK-100 Kerch' sonar, Nakat-M ECM suite, Uspekh-U targeting system; 5015/t

1977, K-204; 1978, K-557, K-184, K-175; 1982, K-62, K-144, K-104; 1984, K-23; 1986, K-56 - under Project 675MK: - 8 P-6/P-6M SSM, Argon radar, MG-200 Arktika sonar, Nakat ECM suite; + 4 x 2 P-500 Bazalt SSM (8 4K80), Argon-K radar, MGK-100 Kerch' sonar, Nakat-M ECM suite, Kasatka-B satellite guidance system; 5015/6420t

12/1980, KS-86: + Project 1851 submersible

1985, K-1; 1989, K-134; 1990, K-22 Krasnogvardeets, K-35 - under Project 675MKV: - 8 P-6/P-6M SSM, Argon radar, MG-200 Arktika sonar, Nakat ECM suite; + 4 x 2 P-1000 Vulkan SSM (8 3M70), 1 x 6 Strela-3M SAM (6), Argon-675MKV radar, MGK-100 Kerch' sonar, Nakat-M ECM suite, Kasatka-B satellite guidance system; 5415/6700t, compl. 109

Naval service: On 10 August 1985 one of K-431 reactors exploded during refuelling in Chazhma Bight near Vladivostok and was never repaired.

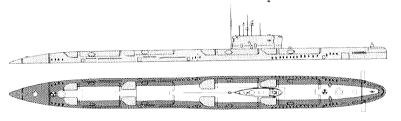

Project 675 1979
