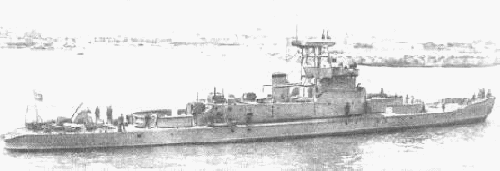

KL-58 1945
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| КЛ-55 [KL-55] (ex-公司 [Shun Tien]), 6.1949- Башкирия [Bashkiriya] | Harima, Japan // Kawasaki, Harbin, Manchukuo | 1933 | 1.8.1934 | 9.1934 // 8.1945 | TS 4.1951, stricken 9.1953 | ||
| КЛ-56 [KL-56] (ex-智言 [Chin Yen]), 6.1949- Бурят-Монголия [Buryat-Mongoliya] | Harima, Japan // Kawasaki, Harbin, Manchukuo | 1934 | 2.7.1934 | 1935 // 8.1945 | TS 4.1951, stricken 9.1953 | ||
| КЛ-57 [KL-57] (ex-陽明 [Yang Min]), 6.1949- Якутия [Yakutiya] | Harima, Japan // Kawasaki, Harbin, Manchukuo | 1933 | 1.8.1934 | 9.1934 // 8.1945 | TS 4.1951, stricken 9.1953 | ||
| КЛ-58 [KL-58] (ex-定邊 [Ting Pien]), 6.1949- Чувашия [Chuvashiya] | Harima, Japan // Kawasaki, Harbin, Manchukuo | 1934 | 2.7.1934 | 1935 // 8.1945 | TS 4.1951, stricken 9.1953 |
|
Displacement standard, t |
|
|
Displacement full, t |
KL-55, 57: 270 KL-56, 58: 290 |
|
Length, m |
KL-55, 57: 55.8 KL-56, 58: 59.4 |
|
Breadth, m |
KL-55, 57: 8.84 KL-56, 58: 8.80 |
|
Draught, m |
0.91 |
|
No of shafts |
2 |
|
Machinery |
2 diesels |
|
Power, h. p. |
KL-55, 57: 680 KL-56, 58: 800 |
|
Max speed, kts |
KL-55, 57: 12.5 KL-56, 58: 13 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
as in Manchurian navy: 1 x 2 - 120/45 10-shiki, 1 x 1 - 120/45 10-shiki, 2 x 1 - 70/12 mortars, 3 x 2 - 13.2/76, 2 DCT, 80 mines |
|
Complement |
70 |
Project history: Manchurian river gunboats, captured by Soviet troops at Harbing and commissioned by Soviet Amur Flotilla.
Modernizations: None.
Naval service: No significant events.
KL-56
