Vikhr' 1880
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Дождь [Dozhd'] | Galerny Is, St. Petersburg | 9.1878 | 21.10.1879 | 1880 | lightvessel 8.1907 | ||
| Вихрь [Vikhr'], 5.1908- Трал [Tral] | New Admiralty, St. Petersburg | 10.1878 | 6.11.1879 | 1880 | harbour vessel 5.1908 | ||
| Град [Grad] | Crichton, Abo | 5.1879 | 11.9.1880 | summer 1881 | hulk 10.1904 | ||
| Снег [Sneg] | Crichton, Abo | 5.1879 | 11.9.1880 | summer 1881 | stricken 4.1902 |
|
Displacement normal, t |
Dozhd', Grad, Sneg: 402 Vikhr': 390 |
|
Displacement full, t |
|
|
Length, m |
33.5 wl |
|
Breadth, m |
Dozhd', Grad, Sneg: 10.5 Vikhr': 11.6 |
|
Draught, m |
Dozhd', Grad, Sneg: 2.20 Vikhr': 2.13 |
|
No of shafts |
2 |
|
Machinery |
2 HC, 2 cylindrical boilers |
|
Power, h. p. |
Dozhd', Grad, Sneg: 300 Vikhr': 445 |
|
Max speed, kts |
Dozhd', Grad, Sneg: 9 Vikhr': 9.3 |
|
Fuel, t |
coal |
|
Endurance, nm(kts) |
Dozhd', Grad, Sneg: 800(6.5) Vikhr': 700(6.5) |
|
Armament |
Dozhd', Vikhr', Sneg: 1 x 1 - 279/17 obr. 1867 Grad: 1 x 1 - 279/18 obr. 1877 |
|
Complement |
54 |
Project history: Composite-hulled, with the 279mm mounted as a pivot gun on a descending platform.
Modernizations: 1890s, Dozhd': - 1 x 1 - 279/17; + 6 x 1 - 37/20 Hotchkiss
1890s, Vikhr', Grad, Sneg: + 2 x 1 - 37/20 Hotchkiss
Naval service: No significant events.

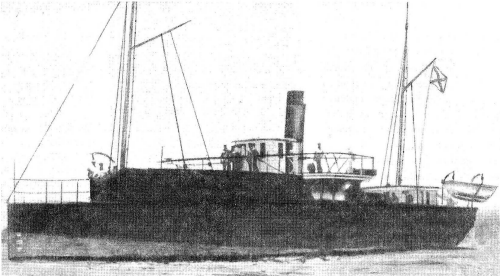

Dozhd'
