Zyuyd 1940
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Çþéä [Zyuyd] | 86 | 196 Yd, Leningrad | 11.1935 | 24.10.1936 | 4.1937 // 8.1941 | survey vessel 11.1943 |
|
Displacement standard, t |
641 |
|
Displacement full, t |
842 |
|
Length, m |
56.8 |
|
Breadth, m |
9.30 |
|
Draught, m |
3.07 |
|
No of shafts |
2 |
|
Machinery |
2 6BK43 diesels |
|
Power, h. p. |
600 |
|
Max speed, kts |
11 |
|
Fuel, t |
diesel oil 50 |
| Endurance, nm(kts) | 2020(9) |
|
Armament |
2 x 1 - 76/28 8K, 6 x 1 - 45/43 21K, 2 x 1 - 20/70 Oerlikon Mk II/IV, 2 x 1 - 12.7/79, 50 mines |
|
Complement |
105 |
Project history: Naval survey vessel, 23.8.1941 converted to minelayer.
Modernizations: None.
Naval service: 12.11.1943 Zyuyd was disarmed and re-converted to survey vessel.

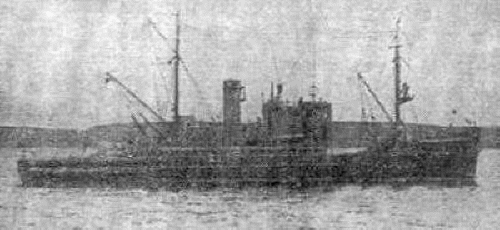

Zyuyd
