Vyatka 1941
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Вятка [Viatka] | 264 Yd, Krasnoarmeysk (near Stalingrad) | 5.1939 | 26.5.1940 | 7.1941 | stricken 1960s | ||
| Онега [Onega] | 264 Yd, Krasnoarmeysk (near Stalingrad) | 1938 | 1940 | 7.1941 | stricken 1960s | ||
| Исеть [Iset'] | 264 Yd, Krasnoarmeysk (near Stalingrad) | 1939 | 1940 | 1941 | communication ship 1942 | ||
| Тура [Tura] | 264 Yd, Krasnoarmeysk (near Stalingrad) | 8.1939 | 26.6.1940 | 9.1941 // --- | completed as depot ship | ||
| Молога [Mologa] | 264 Yd, Krasnoarmeysk (near Stalingrad) // 368 Yd, Khabarovsk | 7.1941 | 1.8.1944 | 9.1944 | stricken 1960s | ||
| Сухона [Sukhona] | 264 Yd, Krasnoarmeysk (near Stalingrad) // 368 Yd, Khabarovsk | 8.1941 | early 1944 | 12.1944 | stricken 1960s |
|
Displacement standard, t |
|
|
Displacement full, t |
527 |
|
Length, m |
56.8 |
|
Breadth, m |
9.80 |
|
Draught, m |
1.70 |
|
No of shafts |
3 |
|
Machinery |
2 4SD-19/32 diesels + 1 2SD-20/30 diesel |
|
Power, h. p. |
280 + 50 = 330 |
|
Max speed, kts |
8.3 |
|
Fuel, t |
diesel oil 14 |
| Endurance, nm(kts) | 1280(4.5) |
|
Armament |
Vyatka, Onega: 3 x 1 - 45/43 21K, 2 x 1 - 12.7/79, 50 mines, nets Mologa, Sukhona: 3 x 1 - 45/43 21K, 1 x 4 - 12.7/62, 50 mines, nets Iset: 3 x 1 - 45/43 21K, 2 x 1 - 12.7/79 Tura: 1 x 1 - 45/43 21K, 2 x 1 - 12.7/79 |
|
Complement |
54 |
Project history: Shallow-draught netlayers, capable to carry up to 50 obr.1926 or 40 KB mines and also minesweeping equipment. They were equipped by two 140hp diesels on side-shafts and one 50hp diesel on central shaft.
Modernizations: None.
Naval service: Iset was in 1942 re-classified as communication ship. Tura 8.9.1941 was commissioned as depot and command ship, in 1944 she received 1 triple 450mm TT and used for torpedo tests.

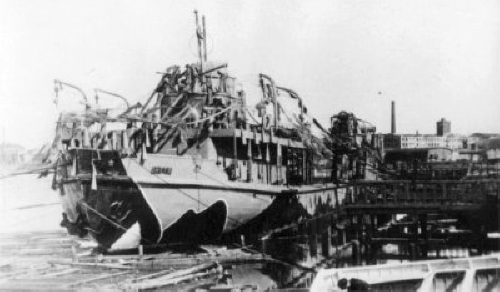

Onega
