IMPERIAL RUSSIAN NAVY / SOVIET NAVY (RUSSIA / USSR)

MINE WARFARE SHIPS

VOLGA minelayer (1909)



Volga 1909



Name No Yard No Builder Laid down Launched Comp Fate
Волга [Volga], 12.1922- 9 Января [9 Yanvarya]     New Admiralty, St. Petersburg 6.1903 10.9.1904 3.1909 TS 10.1922, depot ship 12.1938





Displacement normal, t

1711

Displacement full, t



Length, m

70.3

Breadth, m

11.9

Draught, m

4.35

No of shafts

2

Machinery

2 VTE, 4 Babcock & Wilcox boilers

Power, h. p.

1600

Max speed, kts

13.5

Fuel, t

coal 160

Endurance, nm(kts) 1800(9)

Armament

4 x 1 - 47/40 Hotchkiss, 230 mines

Complement 219

Project history: Built as mine transport, in a peace time it was supposed to use Volga as lighthouse tender and pilot ship. Ship possessed bad seaworthiness and a low stability.

Modernizations: None.

Naval service: Since 1938 she was used as depot hulk, in 1944 transferred to mercantile service. Wreck was preserved to this day in port of St. Petersburg.

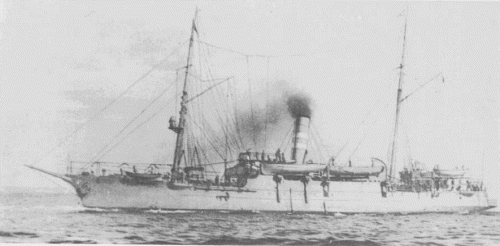

Volga 1910
