SOVIET NAVY (USSR)

MINE WARFARE SHIPS

T-351 and T-390 minesweepers (projects 253L and 253L-P) (1943-1946)

T-390 1945

Name No Yard No Builder Laid down Launched Comp Fate
type MT-1
T-351     189 Yd, Leningrad spring 1943 summer 1943 late 1943 auxiliary 1954
T-352     189 Yd, Leningrad 6.1943 early 1944 5.1944 auxiliary 1954
T-353     189 Yd, Leningrad 8.1943 early 1944 5.1944 sunk 8.9.1944
T-354     189 Yd, Leningrad 8.1943 early 1944 5.1944 auxiliary 1953
T-355     189 Yd, Leningrad 10.1943 spring 1944 6.1944 sunk 20.8.1945
T-356     189 Yd, Leningrad 10.1943 spring 1944 6.1944 auxiliary 1954
T-357     189 Yd, Leningrad 11.1943 summer 1944 10.1944 sunk 12.6.1945
T-358     189 Yd, Leningrad 11.1943 summer 1944 10.1944 stricken 1956
T-359     189 Yd, Leningrad 11.1943 summer 1944 10.1944 stricken 1956
T-360     189 Yd, Leningrad 11.1943 summer 1944 10.1944 stricken 1956
T-361     189 Yd, Leningrad 12.1943 spring 1944 7.1944 stricken 1956
T-362     189 Yd, Leningrad 12.1943 spring 1944 7.1944 stricken 1956
T-363     189 Yd, Leningrad 12.1943 spring 1944 8.1944 stricken 1956
T-364     189 Yd, Leningrad 12.1943 spring 1944 8.1944 stricken 1956
T-370, 1956- Àãàí [Agan]     190 Yd, Leningrad summer 1943 spring 1944 7.1944 TS 1956, auxiliary 1957
T-371     190 Yd, Leningrad summer 1943 spring 1944 7.1944 stricken 1956
T-372, 1.1956- Àãóë [Agul]     190 Yd, Leningrad summer 1943 spring 1944 8.1944 TS 1.1956, auxiliary 12.1956
T-373     190 Yd, Leningrad summer 1943 spring 1944 8.1944 stricken 1956
T-374     190 Yd, Leningrad late 1943 summer 1944 9.1944 stricken 1956
T-375     190 Yd, Leningrad late 1943 summer 1944 9.1944 stricken 1956
T-376     190 Yd, Leningrad late 1943 summer 1944 10.1944 auxiliary 1956
T-377     190 Yd, Leningrad late 1943 spring 1944 10.1944 sunk 5.12.1944
T-378     370 Yd, Leningrad late 1943 spring 1944 7.1944 auxiliary 2.1953
T-379     370 Yd, Leningrad late 1943 spring 1944 8.1944 sunk 23.10.1944
T-380     370 Yd, Leningrad early 1944 summer 1944 10.1944 auxiliary 5.1956
T-381     370 Yd, Leningrad early 1944 summer 1944 12.1944 auxiliary 2.1953
T-382     370 Yd, Leningrad early 1944 autumn 1944 2.1945 auxiliary 2.1953
T-386     189 Yd, Leningrad 2.1944 summer 1944 10.1944 stricken 1956
T-387     189 Yd, Leningrad 2.1944 summer 1944 10.1944 sunk 28.11.1944
T-388     189 Yd, Leningrad 3.1944 autumn 1944 12.1944 stricken 1956
T-389     189 Yd, Leningrad 3.1944 autumn 1944 12.1944 auxiliary 1956
type MT-2
T-222     189 Yd, Leningrad late 1944 spring 1945 8.1945 stricken late 1950s
T-223     189 Yd, Leningrad late 1944 spring 1945 8.1945 stricken late 1950s
T-224     189 Yd, Leningrad late 1944 spring 1945 8.1945 stricken late 1950s
T-225     189 Yd, Leningrad late 1944 spring 1945 8.1945 to Poland 4.1946 (Albatros)
T-226     189 Yd, Leningrad late 1944 spring 1945 8.1945 stricken late 1950s
T-227     189 Yd, Leningrad late 1944 spring 1945 8.1945 stricken late 1950s
T-228     189 Yd, Leningrad late 1944 spring 1945 8.1945 to Poland 4.1946 (Czapla)
T-231     189 Yd, Leningrad late 1944 spring 1945 8.1945 to Poland 4.1946 (Jaskolka)
T-232     189 Yd, Leningrad late 1944 spring 1945 9.1945 stricken late 1950s
T-233     189 Yd, Leningrad late 1944 spring 1945 9.1945 stricken late 1950s
T-234     189 Yd, Leningrad late 1944 spring 1945 9.1945 auxiliary 1956
T-235     189 Yd, Leningrad late 1944 spring 1945 9.1945 stricken late 1950s
T-236     189 Yd, Leningrad late 1944 spring 1945 9.1945 auxiliary 1956
T-237     189 Yd, Leningrad early 1945 summer 1945 10.1945 stricken late 1950s
T-238     189 Yd, Leningrad early 1945 summer 1945 10.1945 stricken late 1950s
T-239     189 Yd, Leningrad early 1945 summer 1945 10.1945 stricken late 1950s
T-240     189 Yd, Leningrad early 1945 summer 1945 10.1945 stricken late 1950s
T-241     189 Yd, Leningrad early 1945 summer 1945 10.1945 to Poland 4.1946 (Jastrzab)
T-242     189 Yd, Leningrad early 1945 summer 1945 12.1945 hulk 1957
T-243     189 Yd, Leningrad early 1945 summer 1945 12.1945 to Poland 4.1946 (Kania)
T-244     189 Yd, Leningrad early 1945 summer 1945 12.1945 to Poland 4.1946 (Kondor)
T-245     189 Yd, Leningrad early 1945 summer 1945 12.1945 stricken late 1950s
T-246     189 Yd, Leningrad early 1945 summer 1945 12.1945 to Poland 4.1946 (Kormoran)
T-247     189 Yd, Leningrad early 1945 autumn 1945 12.1945 auxiliary 1956
T-248     189 Yd, Leningrad early 1945 autumn 1945 12.1945 stricken late 1950s
T-249     189 Yd, Leningrad early 1945 autumn 1945 12.1945 stricken late 1950s
T-365     189 Yd, Leningrad spring 1944 spring 1945 6.1945 stricken late 1950s
T-366     189 Yd, Leningrad spring 1944 spring 1945 7.1945 stricken late 1950s
T-367     189 Yd, Leningrad summer 1944 spring 1945 7.1945 stricken late 1950s
T-368     189 Yd, Leningrad spring 1944 spring 1945 6.1945 stricken late 1950s
T-369     189 Yd, Leningrad summer 1944 spring 1945 7.1945 stricken late 1950s
T-383     370 Yd, Leningrad early 1944 spring 1945 8.1945 survey vessel 1956
T-384     370 Yd, Leningrad early 1944 spring 1945 8.1945 stricken late 1950s
T-385     370 Yd, Leningrad spring 1944 summer 1945 autumn 1945 auxiliary 9.1954
T-390     189 Yd, Leningrad 6.1944 autumn 1944 12.1944 auxiliary 1956
T-391     189 Yd, Leningrad 6.1944 autumn 1944 12.1944 auxiliary 1956
T-434     370 Yd, Leningrad early 1945 autumn 1945 11.1945 stricken late 1950s
T-435     370 Yd, Leningrad early 1945 autumn 1945 late 1945 auxiliary 10.1955
T-439     370 Yd, Leningrad early 1945 autumn 1945 late 1945 stricken late 1950s
T-440     189 Yd, Leningrad early 1945 spring 1945 6.1945 test ship 1956
T-441     189 Yd, Leningrad early 1945 spring 1945 6.1945 stricken late 1950s
T-459     189 Yd, Leningrad 4.1944 autumn 1944 11.1944 auxiliary 1956
T-460     189 Yd, Leningrad 4.1944 autumn 1944 11.1944 auxiliary 1956
T-461     190 Yd, Leningrad early 1945 spring 1945 6.1945 hulk 1956
T-462     190 Yd, Leningrad early 1945 spring 1945 6.1945 stricken late 1950s
T-463     190 Yd, Leningrad early 1945 spring 1945 7.1945 stricken late 1950s
T-464     190 Yd, Leningrad early 1945 spring 1945 7.1945 stricken late 1950s
T-465     190 Yd, Leningrad early 1945 autumn 1945 late 1945 to Poland 4.1946 (Krogulec)
T-466     190 Yd, Leningrad early 1945 spring 1945 summer 1945 stricken late 1950s
T-467     190 Yd, Leningrad early 1945 autumn 1945 late 1945 to Poland 4.1946 (Orlik)
T-468     190 Yd, Leningrad early 1945 spring 1945 summer 1945 stricken late 1950s
T-469     190 Yd, Leningrad early 1945 spring 1945 summer 1945 stricken late 1950s
T-470     190 Yd, Leningrad early 1945 spring 1945 summer 1945 stricken late 1950s
T-471     190 Yd, Leningrad early 1945 summer 1945 early 1946 stricken late 1950s
T-472     190 Yd, Leningrad early 1945 summer 1945 late 1945 stricken late 1950s
T-473     190 Yd, Leningrad early 1945 summer 1945 late 1945 auxiliary 1956
T-474     190 Yd, Leningrad early 1945 summer 1945 late 1945 stricken late 1950s
T-475     190 Yd, Leningrad early 1945 summer 1945 late 1945 auxiliary 1956
T-476     190 Yd, Leningrad early 1945 summer 1945 late 1945 stricken late 1950s
T-477     363 Yd, Leningrad early 1945 summer 1945 autumn 1945 stricken late 1950s
T-478     363 Yd, Leningrad early 1945 summer 1945 late 1945 stricken late 1950s
T-479     363 Yd, Leningrad early 1945 spring 1945 summer 1945 stricken late 1950s



Displacement standard, t

pr. 253L: 113

pr. 253L-P: 128

Displacement full, t

pr. 253L: 127

pr. 253L-P: 143

Length, m

38.0

Breadth, m

pr. 253L: 5.70

pr. 253L-P: 5.72

Draught, m

pr. 253L: 1.37

pr. 253L-P: 1.44

No of shafts

3

Machinery

3 Superior diesels

Power, h. p.

pr. 253L: 690

pr. 253L-P: 480

Max speed, kts

pr. 253L: 14

pr. 253L-P: 12.5

Fuel, t

pr. 253L: diesel oil 10

pr. 253L-P: diesel oil 12

Endurance, nm(kts)

pr. 253L: 2500(8.6)

pr. 253L-P: 3100(6.2)

Armament

pr. 253L: 2 x 1 - 45/65 21KM, 2 x 1 - 12.7/79, 12 mines, OShT-1, KPT mechanical, KEMT-2 magnetic, BAT-2 acoustic minesweeping gear, 2 DCR (12), PEMT magnetic minesweeping gear (in pairs)

pr. 253L-P: 2 x 1 - 45/68 21KM, 2 x 2 - 12.7/79, 12 mines, OShT-1, KPT mechanical, KEMT-2, PEMT magnetic, BAT-2 acoustic minesweeping gear, 2 DCR (12)

Electronic equipment

Tamir-10 sonar

Complement

21

Project history: Designed in 1942 as "seagoing minesweeping boat" (project 253) in variants in steel and wooden hulls. However then the design has been corrected under building conditions in beleaguered Leningrad. Transition to rectilinear hull form became the main change. Project 253L ("Leningrad") was approved 14.4.1943. Because of displacement usually ships of project 253L received a nickname "hundred-tonners".
   Ships concerned to two series: 34 ships of type MT-1 (pr. 253L) and 58 ships of type MT-2 (pr. 253L-P). Latter differed by more powerful generators, allowing to use magnetic sweeps (series MT-1 minesweepers could use it only in pair).

Modernizations: None.

Naval service: T-353 was lost 8.9.1944 on a mine in Narva Bay. T-377 was lost 5.12.1944 as a result of accident in Gulf of Riga. T-387 was sunk 28.11.1944 by German submarine U679 off Paldiski. T-379 23.10.1944 was sunk by unknown cause in harbour of Tallinn; subsequently she was salvaged and commissioned again as TS. T-355 and T-357 were lost on mines after war: former 20.8.1945 in Southern Baltic, latter 12.6.1945 in Danzig Bight.

T-442

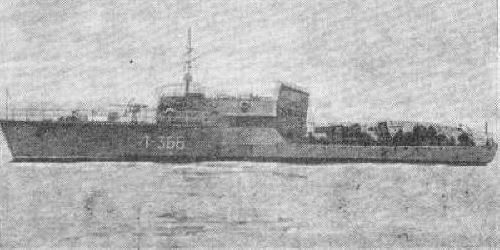

T-366
