SOVIET/RUSSIAN NAVY (USSR/RUSSIA)

MINE WARFARE SHIPS

SEMION ROSHAL seagoing minesweepers (project 266M) (1970 - 1978)

STRELOK seagoing minesweeper (project 02666) (1980)

VALENTIN PIKUL seagoing minesweepers (project 266ME) (2001)

VITSE-ADMIRAL ZAKHARYIN seagoing minesweeper (project 02668) (2008)

Semion Roshal 1979

Semion Roshal' 1980

Strelok 1982

Valentin Pikul' 2005

Vitse-admiral Zakharyin 2010

Turbinist 2015

Vitse-admiral Zakharyin 2015

Name No Yard No Builder Laid down Launched Comp Fate
Project 266M
Семён Рошаль [Semion Roshal']   979 Sredne-Nevskiy, Pontonnyy     30.10.1970 stricken 12.1994
Контр-адмирал Першин [Kontr-admiral Pershin]   903 Sredne-Nevskiy, Pontonnyy     30.12.1970 stricken 6.1993
Артиллерист [Artillerist]   906 Sredne-Nevskiy, Pontonnyy     10.8.1971 stricken 3.1992
Минёр [Minyor]   907 Sredne-Nevskiy, Pontonnyy     30.9.1971 stricken 6.1991
Рулевой [Rulevoy]   908 Sredne-Nevskiy, Pontonnyy     20.10.1971 stricken 7.1994
Торпедист [Torpedist]   909 Sredne-Nevskiy, Pontonnyy     1972 test vessel 1990
Контр-адмирал Власов [Kontr-admiral Vlasov]   910 Sredne-Nevskiy, Pontonnyy     30.9.1972 stricken 12.2004
Контр-адмирал Хорошхин [Kontr-admiral Khoroshkhin]   916 Sredne-Nevskiy, Pontonnyy     20.10.1972 stricken 7.1994
Ракетчик [Raketchik]   917 Sredne-Nevskiy, Pontonnyy     1.12.1972 stricken 7.1996
Сигнальщик [Signalshchik]   918 Sredne-Nevskiy, Pontonnyy     10.5.1973 stricken 7.1994
Дмитрий Лысов [Dmitriy Lysov]   919 Sredne-Nevskiy, Pontonnyy     18.8.1973 stricken 3.1998
Радист [Radist], later- Харьковский комсомолец [Kharkovskiy Komsomolets], 2.1992- Радист [Radist], 8.2005- Иван Голубец [Ivan Golubets] 911 920 Sredne-Nevskiy, Pontonnyy     30.11.1973 in service (2019)
Комендор [Komendor] 808 926 Sredne-Nevskiy, Pontonnyy     30.6.1974 in service (2019)
Десантник [Desantnik]   927 Sredne-Nevskiy, Pontonnyy     10.6.1974 stricken 8.1995
Зенитчик [Zenitchik]   928 Sredne-Nevskiy, Pontonnyy     10.9.1974 to Ukraine 8.1997 (Жовтi Води [Zhovti Vody])
Наводчик [Navodchik], 7.1982- Курский комсомолец [Kurskiy Komsomolets], 2.1992- Наводчик [Navodchik], 7.1999- Ковровец [Kovrovets] 913 929 Sredne-Nevskiy, Pontonnyy     8.11.1974 in service (2019)
Пулемётчик [Pulemiotchik]   938 Sredne-Nevskiy, Pontonnyy     19.6.1975 stricken 5.2001
Турбинист [Turbinist] 912 939 Sredne-Nevskiy, Pontonnyy     30.12.1975 in service (2019)
Дизелист [Dizelist]   940 Sredne-Nevskiy, Pontonnyy     15.10.1975 stricken 12.1994
Машинист [Mashinist] 855 946 Sredne-Nevskiy, Pontonnyy   30.10.1975 30.12.1975 in service (2019)
Моторист [Motorist], 8.1998- Новоуральск [Novouralsk]   947 Sredne-Nevskiy, Pontonnyy     30.6.1976 stricken 6.2005
Всеволод Вишневский [Vsevolod Vishnevskiy]   948 Sredne-Nevskiy, Pontonnyy     30.12.1976 stricken 6.1993
Снайпер [Snayper]   949 Sredne-Nevskiy, Pontonnyy     30.5.1976 stricken 12.1994
Разведчик [Razvedchik]   950 Sredne-Nevskiy, Pontonnyy     10.6.1977 to Ukraine 7.1997 (Черкаси [Cherkasy])
Электрик [Elektrik], 3.1985- Вице-адмирал Жуков [Vitse-admiral Zhukov]   951 Sredne-Nevskiy, Pontonnyy     30.1.1978 stricken 12.2016
Связист [Sviazist]   952 Sredne-Nevskiy, Pontonnyy     10.6.1978 stricken 4.2002
Трал [Tral]   66 Khabarovsk SY 15.7.1970   30.10.1972 stricken 6.1993
Параван [Paravan]   67 Khabarovsk SY 1.3.1972 12.5.1973 31.10.1973 stricken 6.1993
Якорь [Yakor']   68 Khabarovsk SY 1973 1974 30.9.1974 stricken 8.1995
Запал [Zapal]   69 Khabarovsk SY 1974 1975 30.11.1975 stricken 3.1998
Заряд [Zariad]   70 Khabarovsk SY 25.4.1975 24.6.1976 30.12.1976 stricken 7.1996
Project 266ME
Марсовой [Marsovoy]   788 Sredne-Nevskiy, Pontonnyy     1980 to Libya 1981 (راس الجليس [Ras El Gelais])
MT-...   854 Sredne-Nevskiy, Pontonnyy       to export after completion
MT-...   855 Sredne-Nevskiy, Pontonnyy       to export after completion
MT-...   856 Sredne-Nevskiy, Pontonnyy       to export after completion
MT-...   857 Sredne-Nevskiy, Pontonnyy       to export after completion
MT-...   858 Sredne-Nevskiy, Pontonnyy       to export after completion
MT-...   859 Sredne-Nevskiy, Pontonnyy       to export after completion
MT-...   860 Sredne-Nevskiy, Pontonnyy       to export after completion
MT-...   861 Sredne-Nevskiy, Pontonnyy       to export after completion
MT-...   862 Sredne-Nevskiy, Pontonnyy     1983 to Lybia 8.1983 (راس الأولى [Ras Al Oula])
MT-...   863 Sredne-Nevskiy, Pontonnyy     1983 to Lybia 1.1984 (راس الدور [Ras Al Dawar])
MT-...   864 Sredne-Nevskiy, Pontonnyy     1984 to Lybia 1985 (راس مسعد [Ras Massad])
MT-76   865 Sredne-Nevskiy, Pontonnyy     1985 to Lybia 10.1986 (راس الهاني [Ras Al Hani])
MT-1109   866 Sredne-Nevskiy, Pontonnyy     1986 to India 7.1986 (करवार [Karwar])
MT-1112   867 Sredne-Nevskiy, Pontonnyy     1986 to India 12.1987 (कन्ननोरे [Cannanore])
MT-799   868 Sredne-Nevskiy, Pontonnyy     1987 to India 10.1987 (कुड्डलोरे [Cuddalore])
MT-333   869 Sredne-Nevskiy, Pontonnyy     1987 to India 12.1988 (काकीनाडा [Kakinada])
MT-714   870 Sredne-Nevskiy, Pontonnyy     1988 to India 12.1988 (कोजहिकोडे [Kozhikode])
MT-717   871 Sredne-Nevskiy, Pontonnyy     1988 to India 10.1989 (कोंकण [Konkan])
MT-264 738 872 Sredne-Nevskiy, Pontonnyy     9/1989 in service (2019)
MT-265 718 873 Sredne-Nevskiy, Pontonnyy     12/1989 in service (2019)
MT-301   874 Sredne-Nevskiy, Pontonnyy     1991 to Ethiopia 1.1991 (...)
MT-303   875 Sredne-Nevskiy, Pontonnyy     1991 to South Yemen 2.1991 (201)
MT-712   876 Sredne-Nevskiy, Pontonnyy   1993 --- cancelled
Дальномерщик [Dalnomershchik]   877 Sredne-Nevskiy, Pontonnyy   1994 --- cancelled
Валентин Пикуль [Valentin Pikul'] 770 878 Sredne-Nevskiy, Pontonnyy 1990 31.5.2000 20.1.2001 in service (2019)
MT-...   880 Sredne-Nevskiy, Pontonnyy     --- cancelled
MT-417     Sredne-Nevskiy, Pontonnyy       to export after completion
MT-418     Sredne-Nevskiy, Pontonnyy       to export after completion
MT-461     Sredne-Nevskiy, Pontonnyy       to export after completion
MT-463, 1990- MT-749     Sredne-Nevskiy, Pontonnyy       to export after completion
MT-...     Sredne-Nevskiy, Pontonnyy     1981 to Syria 1.1985 (642)
Project 02666
Стрелок [Strelok]   953 Sredne-Nevskiy, Pontonnyy 25.3.1977 19.4.1980 30.12.1980 stricken 4.2002
Project 02668
Вице-адмирал Захарьин [Vitse-admiral Zakharyin] 908 879/801 Sredne-Nevskiy, Pontonnyy 1990 26.5.2006 18.11.2008 in service (2019)



Displacement standard, t

pr. 266M: 745

pr. 266ME: 750

pr. 02668: 791

Displacement full, t

pr. 266M: 800

pr. 266ME: 804

pr. 02668: 852

Length, m

61.0

Breadth, m

10.2

Draught, m

pr. 266M: 2.97

pr. 266ME: 2.30

No of shafts

2

Machinery

2 M-503B-37 diesels

Power, h. p.

5000

Max speed, kts

pr. 266M: 16.5

pr. 266ME: 16

pr. 02668: 17

Fuel, t

diesel oil

Endurance, nm(kts)

pr. 266M: 1500(12)

pr. 266ME: 3000(12)

pr. 02668: 3000(12)

Armament

pr. 266M: 2 x 4 Strela-2 SAM (16 9M32), 2 x 2 - 30/71 AK-230M, 2 x 2 - 25/112 2M-3M, 2 x 5 RBU-1200M Uragan ASWRL, 2 DCR (32) or 7 KMD-1000 mines, KIU-1 USV, BKT mechanical, TEM-4 magnetic, AT-3 acoustic minesweeping gear, ShZ-1 or ShZ-2 mine clearance line charges

pr. 266M 950: 2 x 4 Strela-2 SAM (16 9M32), 2 x 2 - 30/71 AK-230M, 2 x 2 - 25/112 2M-3M, 2 x 1 - 12.7/79, 2 x 5 RBU-1200M Uragan ASWRL, 2 DCR (32) or 7 KMD-1000 mines, KIU-1 USV, BKT mechanical, TEM-4 magnetic, AT-3 acoustic minesweeping gear, ShZ-1 or ShZ-2 mine clearance line charges

pr. 266ME 854-871: 2 x 1 Igla-1 SAM (20 9M313), 2 x 2 - 30/71 AK-230M, 2 x 2 - 25/112 2M-3M, 2 x 5 RBU-1200M Uragan ASWRL, 2 DCR (32) or 8 UDE mines, GKT mechanical, TEM-3 magnetic, AT-2 acoustic minesweeping gear, ShZ-1 or ShZ-2 mine clearance line charges

pr. 266ME 872 and later: 2 x 1 Igla-1 SAM (20 9M313), 2 x 6 - 30/54 AK-306, 2 x 2 - 25/112 2M-3M, 2 x 5 RBU-1200M Uragan ASWRL, 2 DCR (32) or 8 UDE mines, GKT mechanical, TEM-3 magnetic, AT-2 acoustic minesweeping gear, ShZ-1 or ShZ-2 mine clearance line charges

pr. 02666: 2 x 4 Strela-2 SAM (16 9M32), 2 x 2 - 30/71 AK-230M, 2 x 2 - 25/112 2M-3M, 2 x 5 RBU-1200M Uragan ASWRL, 2 DCR (32) or 7 KMD-1000 mines, KIU-1 USV, Trepang USV, Delfin-TM USV, BKT mechanical, TEM-4 magnetic, AT-3 acoustic minesweeping gear, ShZ-1 or ShZ-2 mine clearance line charges

pr. 02668: 2 x 4 Strela-2 SAM (16 9M32), 1 x 6 - 30/54 AK-306, 2 x 1 - 14.5/89, 2 x 5 RBU-1200M Uragan ASWRL, 2 DCR (32) or 7 KMD-1000 mines, KIU-1 USV, Livadiya USV, BKT mechanical, TEM-4 magnetic, AT-3 acoustic minesweeping gear, ShZ-1 or ShZ-2 mine clearance line charges

Electronic equipment

pr. 266M, 02666: MR-302 Rubka, MR-104 Rys', 2x Don-D radars, MG-69 Lan', MG-79 Mezen' sonars

pr. 266ME 854-871: MR-212 Vaygach, MR-104 Rys' radars, MG-69 Lan', MG-79 Mezen' sonars

pr. 266ME 872 and later: MR-212 Vaygach radar, MG-69 Lan', MG-79 Mezen' or MG-89 sonars

pr. 02668: MR-302 Rubka, 2x Don-D radars, MG-69 Lan', MG-79 Mezen', Anapa-P sonars

Complement

pr. 266M: 68

pr. 266ME: 69

pr. 02668: 60

Project history: Project 266M was an improved version of Project 266 in which the coil sweep was replaced by a deep sweep with new control gear; a sweep was provided to deal with active (rising) mines; a 3-channel broadband towed television mine detection sweep system was added; and a sonar was fitted to detect bottom mines. The new ramp stern made it easier to set and recover sweeps. The ship was air conditioned. The main engines were mounted on sound-damping beams and the quiet propellers were shrouded to further reduce sound radiation (a special cavitation monitor was installed). Adjustable protectors compensated for the electric field. The Soviets estimated that a Project 266M minesweeper was nearly 50% more effective than its predecessor Project 266.

    The single Project 02666 was built  with an aluminium hull. She was a test ship for a mine hunting system deployed from a deckhouse on her fantail, which replaced the standard minesweeping winch of this class.

Modernizations: 1980, Dmitriy Lysov - under Project 266MUE: was modernized for training of crews for export ships.

Naval service: No significant events.

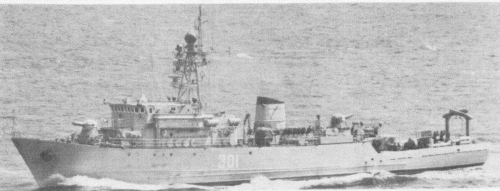

Project 266M 1976

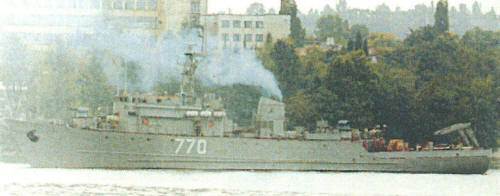

Valentin Pikul' 2003
