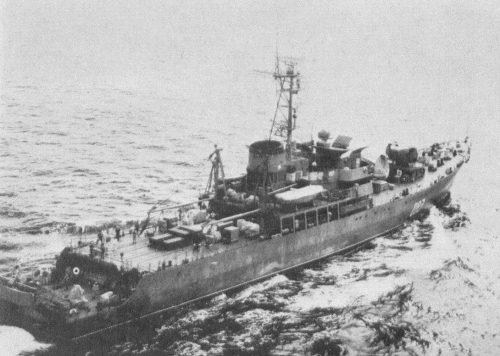

Sukhona 1967
Sukhona 1979
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Сухона [Sukhona] | 1 | Sevastopol Sea Wks | 25.3.1961 | 28.4.1962 | 25.3.1967 | cargo vessel 7.1994 | |
| Вычегда [Vychegda] | 2 | Sevastopol Sea Wks | 11.5.1963 | 1.4.1964 | 31.12.1968 | stricken 6.1993 | |
| Припять [Pripiat'] | 3 | Sevastopol Sea Wks | 8.2.1966 | 17.2.1967 | 29.12.1970 | stricken 9.1995 |
|
Displacement standard, t |
2090 |
|
Displacement normal, t |
2472 |
|
Length, m |
96.6 |
|
Breadth, m |
14.0 |
|
Draught, m |
4.14 |
|
No of shafts |
2 Voith-Schneider |
|
Machinery |
2 2D46 diesels |
|
Power, h. p. |
4000 |
|
Max speed, kts |
14.3 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 3200(12) |
|
Armament |
1 x 4 - 57/75 ZIF-75, 132 net ASW apparatuses or 48 - 154 mines (48 KMD-4-1000 or 52 GM or 80 UKSM/KSM or 90 KB/KB Krab/AGSB Blok or 154 obr. 1908/39g.) or 94 GMZ-43 mine protectors |
| Electronic equipment | MR-302 Rubka, MR-103 Bars, Don-2 radars, MG-5 sonar |
|
Complement |
114 |
Project history: Multipurpose minelayers/netlayers. In Soviet Navy they were classified as netlayers.
Modernizations: None.
Naval service: No significant events.
Project 317 1980
