Murman 1940
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Ìóðìàí [Murman] | 90 | 201 | 194 Yd, Leningrad | 5.1934 | 1.11.1935 | 3.1937 // 1940 | survey vessel 12.1945 |
| Îêåàí [Okean] | 202 | 194 Yd, Leningrad | 1934 | 1.1936 | 8.1936 // 6.1942 | survey vessel 9.1945 | |
| Îõîòñê [Okhotsk] | 203 | 194 Yd, Leningrad | 6.1934 | 1.11.1935 | 4.1937 // 6.1941 | survey vessel 9.1945 |
|
Displacement standard, t |
2375 |
|
Displacement full, t |
Murman: 3700 Okean, Okhotsk: 3200 |
|
Length, m |
78.8 wl 80.6 oa |
|
Breadth, m |
Murman, Okhotsk: 13.0 Okean: 12.0 |
|
Draught, m |
5.60 |
|
No of shafts |
1 |
|
Machinery |
1 VTE, 3 boilers |
|
Power, h. p. |
2400 |
|
Max speed, kts |
13 |
|
Fuel, t |
Murman: coal 1000 Okean, Okhotsk: coal 870 |
| Endurance, nm(kts) | 2800(13) |
|
Armament |
Murman: 3 x 1 - 130/50 B-13, 4 x 1 - 76/28 8K, 2 x 1 - 12.7/79, 152 mines Okean: 3 x 1 - 130/50 B-13, 2 x 1 - 76/28 8K, 2 x 2 - 12.7/90, 124 mines Okhotsk: 3 x 1 - 130/50 B-13, 2 x 1 - 76/28 8K, 2 x 2 - 12.7/90, 58 mines |
|
Complement |
173 |
Project history: Built as naval icebreaking survey vessels. The project 201 (conversion to minelayer) was created in 1939, then conversion of Murman was completed in 1940. Conversion of Okhotsk and Okean was conducted under the modified project: in particular, mine capacity was moderated: Okhotsk carried on deck 58 mines, Okean 62 on deck and 62 in hold, but minelaying from the hold was possible only in good weather. Okhotsk was re-commissioned as minelayer 6.6.1941, Okean 10.6.1942.
Modernizations: None.
Naval service: Late 1945 they all were disarmed and converted again to survey vessels, then they served about 30 years.

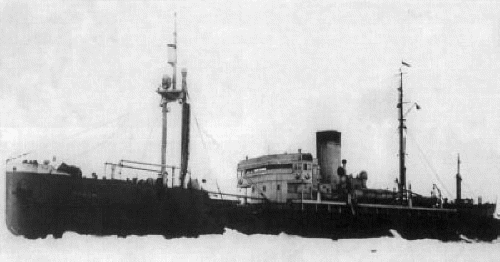

Okean as survey vessel
