SOVIET/RUSSIAN NAVY (USSR/RUSSIA)

AMPHIBIOUS SHIPS AND CRAFT

MDK-51 small landing ships (air cushion) (project 12322) (1988 - 1994)

Evgeniy Kocheshkov 2010

Name No Yard No Builder Laid down Launched Comp Fate
МДК-51 [MDK-51]   100 Almaz, Leningrad 23.2.1983 9.10.1985 10.10.1988 stricken 7.1997
МДК-122 [MDK-122]   101 Almaz, Leningrad     2.1.1990 stricken 6.2005

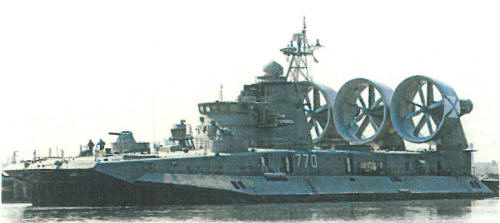

МДК-50 [MDK-50], 8.2001- Евгений Кочешков [Evgeniy Kocheshkov] 770 102 Almaz, Leningrad     30.10.1990 in service (2019)
МДК-94 [MDK-94], 3.2001- Мордовия [Mordoviya] 782 103 Almaz, Leningrad     15.10.1991 in service (2019)
МДК-118 [MDK-118]   104 Almaz, Leningrad     29.8.1994 to Greece 12.2000 (Κεφαλληνία [Kethallinia])
МДК-119 [MDK-119]   105 Almaz, Leningrad     --- cancelled 2005
МДК-120 [MDK-120]   106 Almaz, Leningrad     --- cancelled 2003
МДК-57 [MDK-57]   301 More, Feodosia     30.12.1988 to Ukraine 12.1995 (Краматорськ [Kramatorsk])
МДК-123 [MDK-123]   302 More, Feodosia     30.12.1989 to Ukraine 12.1995 (Артемiвськ [Artemivsk])
МДК-93 [MDK-93]   303 More, Feodosia     30.12.1991 to Ukraine 12.1995 (Горлiвка [Gorlivka])
МДК-100 [MDK-100]   304 More, Feodosia     26.6.1993 // --- completed for Ukraine (Донецьк [Donetsk])
МДК-100 [MDK-100]   305 More, Feodosia 1993 9.12.2000 3.2.2001 // --- completed for Ukraine (Iван Богун [Ivan Bogun])



Displacement standard, t

500

Displacement normal, t

550

Length, m

57.3

Breadth, m

25.6

Draught, m

1.60 / 0.00

No of shafts

3 air propellers / 2 air propellers for lift

Machinery

3 MT-70 gas turbines / 2 NO-10 gas turbines

Power, h. p.

30000 / 20000

Max speed, kts

63

Fuel, t

gas turbine oil

Endurance, nm(kts)

300(55)

Armament

1 x 2 Igla-1M SAM (32), 2 x 6 - 30/54 AK-630M, 2 x 22 - 140 MS-227 Ogon' RL

Military load

3 tanks or 8 AFV's or 360 troops or 150 t of cargo or 78 mines

Electronic equipment

100: Pozitiv, Lazur', Ekran-1 radars, MP-411 ECM suite

others: Lazur', MR-123-02 Vympel, Ekran-1 radars, MP-411 ECM suite

Complement

27

Project history: Successor of the Project 12321 Jeiran LCAC. Largest Soviet air-cushion vehicle.

Modernizations: None.

Naval service: No significant events.

Evgeniy Kocheshkov 2003

© Ivan Gogin, 2016-19
