Mitrofan Moskalenko 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Иван Рогов [Ivan Rogov] | 101 | Yantar', Kaliningrad | 9/1973 | 15.6.1978 | stricken 8.1995 | ||
| Александр Николаев [Aleksandr Nikolaev] | 102 | Yantar', Kaliningrad | 3/1976 | 30.12.1982 | stricken 12.2006 | ||
| Митрофан Москаленко [Mitrofan Moskalenko] | 103 | Yantar', Kaliningrad | 5/1984 | 23.9.1990 | stricken 12.2006 |
|
Displacement standard, t |
8600 |
|
Displacement normal, t |
13880 |
|
Length, m |
157.0 |
|
Breadth, m |
23.8 |
|
Draught, m |
5.00 |
|
No of shafts |
2 |
|
Machinery |
101: 2 M-12 gas turbines 102, 103: 2 M-12A gas turbines |
|
Power, h. p. |
36000 |
|
Max speed, kts |
21 |
|
Fuel, t |
gas turbine oil |
|
Endurance, nm(kts) |
12500(14) |
|
Armament |
101: 1 x 2 Osa-M SAM (20 9M33), 1 x 2 - 76/59 AK-726, 4 x 6 - 30/54 AK-630, 1 x 40 - 122 MS-73 Grad-M RL (320), 1 x 7 - 55 MRG-1 Ogonyok grenade launcher, 4 helicopters (Ka-25PS) 102, 103: 1 x 2 Osa-MA SAM (20 9M33), 4 x 4 Strela-3 SAM (16), 1 x 2 - 76/59 AK-726, 4 x 6 - 30/54 AK-630, 1 x 40 - 122 MS-73 Grad-M RL (320), 1 x 7 - 55 MRG-1 Ogonyok grenade launcher, 4 helicopters (Ka-29) |
|
Military load |
6 pr. 1176 or 6 pr. 1785 or 3 pr. 1206 landing craft, 23 tanks, 440 troops or 1730 t of cargo |
|
Electronic equipment |
101: MR-310 Angara, 4R-33, MR-105 Turel', 2x MR-123 Vympel-A, Volga radars, MG-7 Braslet sonar, MP-401 Start ECM suite 102: MR-310 Angara, 4R-33A, MR-105 Turel', 2x MR-123 Vympel-A, Volga radars, MG-7 Braslet sonar, MP-401 Start ECM suite 103: MR-750 Fregat-M2, 4R-33A, MR-105 Turel', 2x MR-123 Vympel-A, 2x MR-212/201 Vaygach-U radars, MG-7 Braslet sonar, MP-401 Start ECM suite |
|
Complement |
250 |
Project history: When she appeared, Ivan Rogov appeared to presage a Soviet shift towards amphibious intervention overseas. She can carry a full naval infantry battalion including ten tanks and thirty APCs and has three unique pr. 1206 craft to put them ashore as well as four Karnov Ka-25 helicopters. She had an integral shore bombardment capability in her 122mm automatic RL. Sometimes she was compared with the US LPH, although the small hangar in the superstructure was in no way comparable with the standard US hangar deck. Below that deck there was a tank deck forward, and a well deck (with a stern gate) aft. In this sense the concept matches that of the LHA, albeit on a much smaller scale. Unlike the US ship, however, this one beaches to discharge her vehicles through a bow door.
Modernizations: 1985, Ivan Rogov: - 4 Ka-25PS helicopters; + 4 x 4 Strela-3 SAM (16), 4 Ka-29 helicopters
Naval service: No significant events.

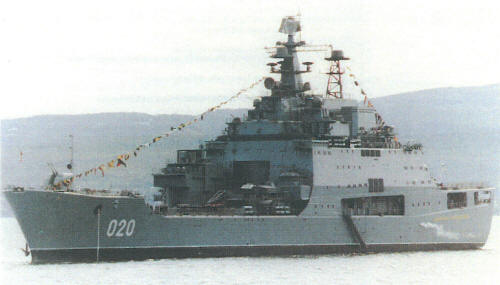

Mitrofan Moskalenko 1996
