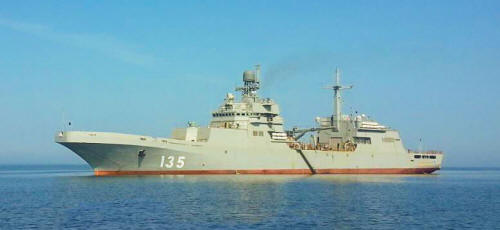

Ivan Gren 2018
Vladimir Andreev
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Иван Грен [Ivan Gren] | 135 | 301 | Yantar', Kaliningrad | 24.12.2004 | 18.5.2012 | 20.6.2018 | in service (2019) |
| Пётр Моргунов [Piotr Morgunov] | 302 | Yantar', Kaliningrad | 11.6.2015 | 25.5.2018 | 2019 | building (2019) | |
| Владимир Андреев [Vladimir Andreev] | 303 | Yantar', Kaliningrad | 23.4.2019 | 2021 | 2023 | building (2019) | |
| Василий Трушин [Vasiliy Trushin] | 304 | Yantar', Kaliningrad | 23.4.2019 | 2022 | 2024 | building (2019) |
|
Displacement standard, t |
5080 |
|
Displacement normal, t |
6000 |
|
Length, m |
120.0 pp 128.0 oa |
|
Breadth, m |
16.5 |
|
Draught, m |
6.10 |
|
No of shafts |
2 |
|
Machinery |
2 DRRA-3700 diesels |
|
Power, h. p. |
10400 |
|
Max speed, kts |
18 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3500(16) |
|
Armament |
301, 302: 1 x 4 Igla SAM (8 9M39), 1 x 12 - 30/54 AK-630M-2 Duet, 2 x 6 - 30/54 AK-630M, 1 helicopter (Ka-29) 303, 304: 1 x 4 Igla SAM (8 9M39), 1 x 12 - 30/54 AK-630M-2 Duet, 2 x 6 - 30/54 AK-630M, 4 helicopters (Ka-29, Ka-52P) |
|
Military load |
13 main battle tanks or 60 vehicles, 380 troops or 1500t cargo |
|
Electronic equipment |
MR-352 Pozitiv, 5P-10 Laska, MR-123-02, 3x nav. radars, 4x KT-308 decoy launchers (Prosvet-M system) |
|
Complement |
100 |
Project history: Replacement for the old Project 1171 ships. Apparels bow and aside. Second pair will have much larger helicopter deck and hangar.
Modernizations: None.
Naval service: No significant events.

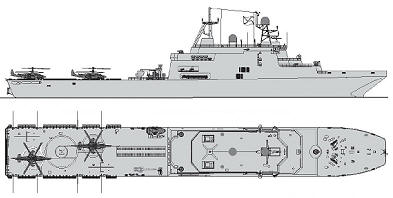

Ivan Gren 2016
