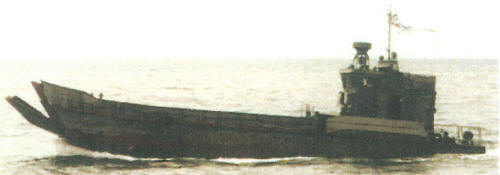

D-335 landing craft (project 1176) (1971 - 2009)
D-335 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Ä-335 [D-335] | 4001 | Azov SYd | 12.1971 | stricken 4.1990 | |||
| Ä-236 [D-236] | 4002 | Azov SYd | 12.1974 | stricken 8.1993 | |||
| Ä-237 [D-237] | 4003 | Azov SYd | 12.1974 | to Georgia 1992 (MDK01) | |||
| Ä-393 [D-393] | 4004 | Azov SYd | 1975 | stricken 8.1993 | |||
| Ä-392 [D-392] | 4005 | Azov SYd | 12.1975 | stricken 7.1996 | |||
| Ä-634 [D-634] | 4006 | Azov SYd | 6.1976 | stricken 8.1993 | |||
| Ä-395 [D-395] | 4007 | Azov SYd | 1976 | stricken 8.1995 | |||
| Ä-704 [D-704] | 640 | 4008 | Azov SYd | 6.1976 | in service (2019) | ||
| Ä-705 [D-705] | 4009 | Azov SYd | 9.1976 | stricken 8.1995 | |||
| Ä-706 [D-706] | 4010 | Azov SYd | 12.1976 | stricken 8.1995 | |||
| Ä-441 [D-441] | 4011 | Azov SYd | 4.1977 | stricken 3.1998 | |||
| Ä-444 [D-444] | 4012 | Azov SYd | 10.1977 | stricken 4.2002 | |||
| Ä-448 [D-448] | 4013 | Azov SYd | 10.1977 | stricken 4.2002 | |||
| Ä-280 [D-280] | 4014 | Azov SYd | 6.1978 | stricken 7.1996 | |||
| Ä-282 [D-282] | 4015 | Azov SYd | 9.1978 | stricken 5.2001 | |||
| Ä-286 [D-286] | 4016 | Azov SYd | 11.1978 | stricken 3.1998 | |||
| Ä-289 [D-289] | 4017 | Azov SYd | 1979 | stricken 7.1994 | |||
| Ä-305 [D-305] | 4018 | Azov SYd | 12.1979 | to Ukraine 10.1998 (Âië [Vil]) | |||
| Ä-306 [D-306] | 4019 | Azov SYd | 12.1980 | stricken 6.1993 | |||
| Ä-70 [D-70] | 677 | 4020 | Azov SYd | 7.1981 | in service (2019) | ||
| Àçîâ [Azov] | 4021 | Azov SYd | 6.1981 | stricken 2018 | |||
| Ä-464 [D-464] | 590 | 4024 | Azov SYd | 8.1985 | in service (2019) | ||
| Ä-465 [D-465] | 746 | 4025 | Azov SYd | 12.1986 | in service (2019) | ||
| Ä-263 [D-263] | 4026 | Azov SYd | 11.1987 | stricken 2008 | |||
| Ä-295 [D-295] | 542 | 4027 | Azov SYd | 12.1989 | in service (2019) | ||
| Ä-460 [D-460] | 4028 | Azov SYd | 6.1989 | stricken 6.2005 | |||
| Ä-325 [D-325] | 766 | 4029 | Azov SYd | 12.1991 | in service (2019) | ||
| Ä-148 [D-148] | 578 | 4030 | Azov SYd | 9.1993 | in service (2019) | ||
| Ä-365 [D-365] | 765 | 4031 | Azov SYd | 1994 | in service (2019) | ||
| Ä-182 [D-182] | 533 | 4032 | Azov SYd | 8.1996 | in service (2019) | ||
| Ä-185 [D-185] | 642 | 4034 | Azov SYd | 12.2000 | in service (2019) | ||
| Ä-163 [D-163], 7.2006- Íèêîëàé Ðóáöîâ [Nikolay Rubtsov] | 555 | Rybinsk SYd | 12.2005 | in service (2019) | |||
| ÏÑÊÀ-771 [PSKA-771] | 03701 | Rybinsk SYd | 1995 | Board Guard, stricken 2016 | |||
| ÏÑÊÀ-772 [PSKA-772] | 683 | 03702 | Rybinsk SYd | 1995 | Board Guard, in service (2019) | ||
| Ä-106 [D-106] | 570 | 03703 | Rybinsk SYd | 10.2009 | in service (2019) | ||
| Ä-184 [D-184] | 03704 | Rybinsk SYd | 2008 | stricken 2018 | |||
| Ä-57 [D-57] | 675 | 201 | Vostochnaya SYd, Vladivostok | 11.2007 | in service (2019) | ||
| Ä-293 [D-293] | Azov SYd | ~1974 | to Georgia 1992 (MDK02) |
|
Displacement standard, t |
60 |
|
Displacement normal, t |
119 |
|
Length, m |
24.0 |
|
Breadth, m |
5.20 |
|
Draught, m |
1.55 |
|
No of shafts |
2 |
|
Machinery |
4001-4012, 4014-4030, 4032-4034 and others, 03701-03703: 2 3D12 diesels 4013: 2 3D12A1 diesels 4031, D-163, 184: 2 3D6S2 diesels 201: 2 3D6S2-081 diesels |
|
Power, h. p. |
4001-4030, 4032-4034 and others, 03701-03703: 600 4031, 201, D-163, 184: 300 |
|
Max speed, kts |
4001-4030, 4032-4034 and others, 03701-03703: 11 4031, 201, D-163, 184: 9.3 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
4001-4030, 4032-4034 and others, 03701-03703: 500(5) 4031, 201, D-163, 184: 1400(5) |
|
Armament |
none |
|
Military load |
1 tank or 20 troops or 50 t of cargo |
|
Electronic equipment |
Mius or Don radar 201: Liman-18M1 radar |
|
Complement |
4 |
Project history: Successors of T-4 class with 13.7x3.9m well deck. Each Ivan Rogov class LPD had one such craft as a tug for her hovercraft.
Modernizations: None.
Naval service: No significant events.
1996
