Yastreb 1945
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| project 29 | |||||||
| Ястреб [Yastreb] | 530 | 190 Yd (Zhdanov Yd), Leningrad | 16.5.1939 | 2.6.1942 | 23.2.1945 | target ship 8.1956 | |
| project 29K and incomplete ships | |||||||
| Орёл [Oryol] | 534 | 190 Yd (Zhdanov Yd), Leningrad // 820 Yd, Königsberg (Kaliningrad) | 28.5.1939 | 12.2.1941 | 21.12.1950 | test ship 4.1958 | |
| Коршун [Korshun] | 535 | 190 Yd (Zhdanov Yd), Leningrad // 820 Yd, Königsberg (Kaliningrad) | 25.10.1939 | 28.5.1941 | 21.1.1951 | commissioned by Border Guard, to Navy 5.1952, test ship 4.1958 | |
| Зоркий [Zorkiy] (ex-Алмаз [Almaz]) | 536 | 190 Yd (Zhdanov Yd), Leningrad // 820 Yd, Königsberg (Kaliningrad) | 23.5.1940 | 31.10.1940 | 30.1.1950 | commissioned by Border Guard, to Navy 6.1952, hulk 10.1956 | |
| Бдительный [Bditelnyy] (ex-Изумруд [Izumrud]) | 537 | 190 Yd (Zhdanov Yd), Leningrad | 23.5.1940 | --- | --- | suspended 7.1941 | |
| Беркут [Berkut] | 553 | 190 Yd (Zhdanov Yd), Leningrad | 1940 | --- | --- | suspended 7.1941 | |
| Сокол [Sokol] | 554 | 190 Yd (Zhdanov Yd), Leningrad | 1940 | --- | --- | suspended 7.1941 | |
| Гриф [Grif] | 555 | 190 Yd (Zhdanov Yd), Leningrad | 1940 | --- | --- | suspended 7.1941 | |
| Тигр [Tigr] | 365 | 198 Yd (Marti Yd), Nikolayev | 1940 | --- | --- | abandoned 15.8.1941 | |
| Леопард [Leopard] | 366 | 198 Yd (Marti Yd), Nikolayev | 1940 | --- | --- | abandoned 15.8.1941 | |
| Рысь [Rys`] | 367 | 198 Yd (Marti Yd), Nikolayev | 1940 | --- | --- | abandoned 15.8.1941 | |
| Ягуар [Yaguar] | 368 | 198 Yd (Marti Yd), Nikolayev | 1940 | --- | --- | abandoned 15.8.1941 | |
| Буревестник [Burevestnik] | 1 | 199 Yd, Komsomolsk-on-Amur | 4.12.1939 | 27.7.1946 | 15.7.1947 | hulk 4.1957 | |
| Альбатрос [Albatros] | 2 | 199 Yd, Komsomolsk-on-Amur | 4.12.1939 | 2.6.1944 | 29.9.1945 | hulk 3.1958 | |
|
Displacement standard, t |
project 29: 920 project 29K: 917 |
|
Displacement normal, t |
project 29: 1248 project 29K: 1266 |
|
Length, m |
85.7 |
|
Breadth, m |
8.40 |
|
Draught, m |
project 29: 2.92 project 29K: 2.89 |
|
No of shafts |
2 |
|
Machinery |
2 sets geared steam turbines, 2 water-tube boilers |
|
Power, h. p. |
26000 |
|
Max speed, kts |
project 29: 32 project 29K: 31 |
|
Fuel, t |
oil 300 |
|
Endurance, nm(kts) |
2290(15) |
|
Armament |
Yastreb: 3 x 1 - 100/54 B-34, 4 x 1 - 37/63 70K, 2 x 2 - 12.7/79, 1 x 3 - 450 TT, 2 DCR (20), 24 mines Albatros, Burevestnik: 3 x 1 - 85/52 90K, 4 x 1 - 37/73 70K, 3 x 1 - 12.7/79, 1 x 3 - 450 TT, 2 DCR (46), 24 mines Oryol, Korshun, Zorkiy: 3 x 1 - 100/56 B-34U, 6 x 1 - 37/73 70K, 4 x 2 - 12.7/79, 1 x 3 - 450 TT, 2 DCR (46), 20 mines |
|
Sensors |
Yastreb, Albatros, Burevestnik: Giuys-1M radar, Tamir-5N sonar Oriol, Korshun, Zorkiy: Giuys-1M, Rif-1, Redan (on some) radars, Tamir-5N sonar |
|
Complement |
174 |
Project history: Development of Uragan class guard ships with increased dimensions for improvement of seaworthiness and strengthening of armament. The design assignment was given out in December, 1937. Building of 30 ships was planed, but prior to the beginning of war only 14 were laid down.
Modernizations: late 1940s, Yastreb: + 2 x 1 - 37/73 70K, 2 x 2 - 12.7/79, Rif-1 radar
late 1940s, Albatros, Burevestnik: - 3 x 1 - 85/52, 3 x 1 - 12.7/79; + 3 x 1 - 100/56 B-34U, 2 x 1 - 37/73 70K, 4 x 2 - 12.7/79, Rif-1, Redan (presumably) radars
Naval service: No significant events.

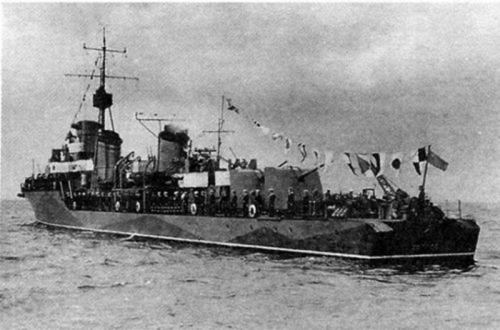

Yastreb 1945
