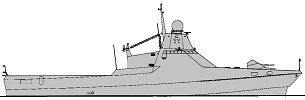

VASILIY BYKOV patrol ships (project 22160) (2018-)
Vasiliy Bykov
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Василий Быков [Vasiliy Bykov] | 368 | 161 | SSZ im. Gorkogo, Zelenodolsk | 26.2.2014 | 28.8.2017 | 20.12.2018 | in service (2019) |
| Дмитрий Рогачёв [Dmitriy Rogachiov] | 162 | SSZ im. Gorkogo, Zelenodolsk | 25.7.2014 | 5/2018 | 2019 | building (2019) | |
| Павел Державин [Pavel Derzhavin] | 163 | SSZ im. Gorkogo, Zelenodolsk // Zaliv, Kerch' | 18.2.2016 | 21.2.2019 | 2020 | building (2019) | |
| Сергей Котов [Sergey Kotov] | 164 | SSZ im. Gorkogo, Zelenodolsk // Zaliv, Kerch' | 8.5.2016 | 2019 | 2020 | building (2019) | |
| Виктор Великий [Viktor Velikiy] | 165 | SSZ im. Gorkogo, Zelenodolsk | 25.11.2016 | 2020 | 2021 | building (2019) | |
| Николай Сипягин [Nikolay Sipiagin] | 166 | SSZ im. Gorkogo, Zelenodolsk | 13.1.2018 | 2021 | 2022 | building (2019) |
|
Displacement standard, t |
1300 |
|
Displacement full, t |
1600 |
|
Length, m |
94.0 |
|
Breadth, m |
14.0 |
|
Draught, m |
4.40 |
|
No of shafts |
2 |
|
Machinery |
2 16D49 diesels |
|
Power, h. p. |
12000 |
|
Max speed, kts |
27 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
6000(12) |
|
Armament |
2 x 4 Kalibr-NK CruM/SSM (8 3M14/3M54) (fitted for), 1 x 8 Gibka (Igla-S) SAM (8 Igla-S), 1 x 1 - 76/59 A-176MA, 2 x 1 - 14.5/89, 2 x 10 - 55 DP-65 grenade launchers, 2 x 2 - 45 DP-64 grenade launchers, 1 helicopter (Ka-27PS or Ka-29 or Ka-52K), 2 - 4 UAVs |
|
Sensors |
5P-26 Pozitiv-MK, Pal-N radars, Ariadna, Pallada sonars, TK-25 ECM suite, 2x PK-10 Smelyy decoy RL |
|
Complement |
80 |
Project history: Patrol ships with modular armament, for coastal service. Designed to perform the border patrol for the protection of the territorial waters and EEZ in deep and shallow waters, anti-smuggling and -piracy duties, search and rescue service, environmental monitoring, escorting, as well as protection of naval bases and sea areas in wartime. SSMs and SAMs are mounted in replaceable modules. Order of 6 more ships is planned for completion in 2020s. Ship carries one project 22800 assault boat launched via stern ramp.
Modernizations: None.
Naval service: No significant events.
