YASTREB guard ship (project 11660)
TATARSTAN guard ships (project 11661K) (2003-2012)
Tatarstan 2015
Dagestan 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Project 11660 | |||||||
| Ястреб [Yastreb] | 901 | Gorkiy SYd, Zelenodolsk | 1990 | --- | --- | cancelled 1993 | |
| Project 11161K | |||||||
| Татарстан [Tatarstan] (ex-СКР-200 [SKR-200]) | 691 | 951 | Gorkiy SYd, Zelenodolsk | 5/1990 | 7/1993 | 31.8.2003 | in service (2019) |
| Дагестан [Dagestan] (ex-СКР-201 [SKR-201]) | 693 | 952 | Gorkiy SYd, Zelenodolsk | 1994 | 1.4.2011 | 28.11.2012 | in service (2019) |
pr. 1161K
|
Displacement standard, t |
1500 |
|
Displacement full, t |
951: 1930 952: 1805 |
|
Length, m |
951: 102.2 952: 102.1 |
|
Breadth, m |
951: 13.8 952: 13.2 |
|
Draught, m |
951: 3.70 952: 3.50 hull 4.50 max |
|
No of shafts |
2 |
|
Machinery |
CODAG M-44: 1 86B cruising diesel + 2 boost gas turbines |
|
Power, h. p. |
38000 (8000 + 30000) |
|
Max speed, kts |
28 |
|
Fuel, t |
diesel oil / gas turbine oil |
|
Endurance, nm(kts) |
3800(14) |
|
Armament |
951: 2 x 4 Uran SSM (8 3M24), 1 x 2 Osa-MA2 SAM (20 9M33), 1 x 1 - 76/59 AK-176M, 2 x 6 - 30/54 AK-630M, 20 mines 952: 1 x 8 Kalibr-NK CruM/SSM (VLS, 8 3M14/3M54), 1 x 1 - 76/59 AK-176M, 1 x 12 - 30/80 Palash, 2 x 1 - 14.5/89, 20 mines |
|
Sensors |
951: 34K1 Monolit, MR-352 Pozitiv, MR-212 Vaygach, 4MPZ-301 Baza, MR-123 Vympel radars, Zarnitsa sonar, TK-25 ECM suite, 4x PK-10 Smelyy decoy launchers, Sigma CCS 952: Mineral-M, Pozitiv-M1, MR-212 Vaygach, MR-123 Vympel radars, Shar E/O director, Zarnitsa sonar, TK-25 ECM suite, 4x PK-10 Smelyy decoy launchers, Sigma CCS |
|
Complement |
121 |
Project history: Successor of light frigate of the project 1159. Dagestan was built under modified design with VLS for 8 Kalibr-Nk missiles but without planned Poliment SAM. Diesel and gas turbines can be clutched with shafts in different variants: all to two shafts, only diesel or only turbines or diesel on one shaft and gas turbine on another. Ships carry sonobuoy receiver/processor for working with ASW aircraft. Planned ASW armament (2 twin 533mm torpedo tubes and 1 RBU-6000 ASW rocket launcher) was not installed.
Modernizations: 2016, Tatarstan: + MR-5PV Gals radar, MG-757 Anapa-M sonar
Naval service: No significant events.

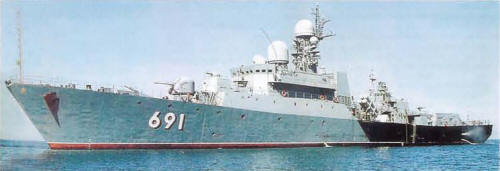

Tatarstan 2005
