SOVIET/RUSSIAN NAVY (USSR/RUSSIA)

ESCORTS

PLK-39 ASW ships (project 35) (1964 - 1967)

Gangutets 1967

SKR-39 1979

Name No Yard No Builder Laid down Launched Comp Fate
ÏËÊ-7 [PLK-7], 5.1966- ÑÊÐ-7 [SKR-7]   164 820 Yd, Kaliningrad 1/1961 25.12.1961 29.12.1964 stricken 8.1987
ÏËÊ-20 [PLK-20], 5.1966- ÑÊÐ-20 [SKR-20]   168 820 Yd, Kaliningrad 26.1.1961 23.3.1962 25.12.1964 stricken 5.1989
ÏËÊ-32 [PLK-32], 5.1966- ÑÊÐ-32 [SKR-32]   169 820 Yd, Kaliningrad 21.3.1961 15.5.1962 29.12.1964 stricken 5.1989
ÏËÊ-39 [PLK-39], 5.1966- ÑÊÐ-39 [SKR-39]   170 820 Yd, Kaliningrad 26.5.1961 23.6.1962 16.12.1964 stricken 4.1990
ÏËÊ-44 [PLK-44], 5.1944- ÑÊÐ-86 [SKR-86]   171 820 Yd, Kaliningrad 10.8.1961 31.8.1962 31.12.1964 stricken 4.1990
ÏËÊ-49 [PLK-49], 5.1966- ÑÊÐ-49 [SKR-49], 8.1968- Èâàí Ñëàäêîâ [Ivan Sladkov]   172 Yantar', Kaliningrad 17.10.1961 15.6.1962 25.6.1965 stricken 4.1990
ÏËÊ-53 [PLK-53], 5.1966- ÑÊÐ-53 [SKR-53]   174 Yantar', Kaliningrad 30.11.1961 10.12.1962 31.8.1965 stricken 4.1990
ÏËÊ-8 [PLK-8], 5.1966- ÑÊÐ-24 [SKR-24]   175 Yantar', Kaliningrad 14.3.1962 10.2.1963 30.9.1965 stricken 4.1990
ÏËÊ-51 [PLK-51], 5.1966- ÑÊÐ-84 [SKR-84]   176 Yantar', Kaliningrad 17.5.1962 10.4.1963 29.12.1965 stricken 7.1992
ÏËÊ-48 [PLK-48], 5.1966- ÑÊÐ-48 [SKR-48]   177 Yantar', Kaliningrad 28.6.1962 21.6.1963 31.12.1965 stricken 4.1990
ÑÊÐ-12 [SKR-12] (ex-ÏËÊ-12 [PLK-12])   178 Yantar', Kaliningrad 12.9.1962 18.5.1963 30.5.1966 stricken 10.1992
ÑÊÐ-19 [SKR-19] (ex-ÏËÊ-19 [PLK-19])   179 Yantar', Kaliningrad 25.2.1963 27.7.1964 30.6.1966 stricken 10.1992
ÑÊÐ-35 [SKR-35] (ex-ÏËÊ-35 [PLK-35]), 7.1967- Ãàíãóòåö [Gangutets]   180 Yantar', Kaliningrad 19.12.1962 27.9.1963 30.8.1966 stricken 4.1990
ÑÊÐ-83 [SKR-83] (ex-ÏËÊ-55 [PLK-55]), 6.1980- 60 ëåò Êîìñîìîëó Áåëîðóññèè [60 Let Komsomolu Belorussii)   181 Yantar', Kaliningrad 20.7.1962 10.12.1963 3.9.1966 stricken 6.1991
ÑÊÐ-6 [SKR-6] (ex-ÏËÊ-6 [PLK-6])   182 Yantar', Kaliningrad 10.4.1963 6.2.1964 30.11.1966 stricken 4.1990
ÑÊÐ-13 [SKR-13] (ex-ÏËÊ-13 [PLK-13])   183 Yantar', Kaliningrad 31.5.1963 13.10.1964 28.12.1966 stricken 6.1991
ÑÊÐ-90 [SKR-90]   184 Yantar', Kaliningrad 10.2.1964 30.11.1964 30.5.1967 stricken 4.1990
ÑÊÐ-117 [SKR-117]   185 Yantar', Kaliningrad 15.10.1963 25.2.1965 29.6.1967 stricken 4.1990



Displacement standard, t

940

Displacement normal, t

1136

Length, m

82.4

Breadth, m

9.10

Draught, m

3.00 mean 5.84 max

No of shafts

2 with hydroturbines

Machinery

164: CODAG: 2 D-2 gas turbines + 2 47B-16 diesels

others: CODAG: 2 D-3 gas turbines + 2 61B diesels

Power, h. p.

164: 42000 (30000+12000)

others: 48000 (36000+12000)

Max speed, kts

164: 30

others: 31

Fuel, t

oil

Endurance, nm(kts)

164: 2500(14)

others: 2000(14)

Armament

164-176: 2 x 2 -76/59 AK-726, 1 x 5 - 400 TT, 4 x 12 RBU-6000 Smerch-2 ASWRL, 2 DCR

177-185: 2 x 2 - 76/59 AK-726, 2 x 5 - 400 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 DCR

Sensors

164-181: Fut-N, Fut-B, Don radars, MG-312I Titan, MG-311 Vychegda sonars, Bizan'-4B ECM suite

181-185: MR-302 Rubka, Fut-B, Don radars, MG-312I Titan, MG-311 Vychegda sonars, Bizan'-4B ECM suite

Complement

164: 102

others: 103

Project history: Designation changed from small ASW ship (PLK) to guard ship (SKR) 19.5.1966.

    The Project 35 machinery arrangement recalls that of the earlier Project 204 corvettes. The gas turbine arrangement aft precludes installation of a towed (as opposed to a dipping) sonar aft.

Modernizations: 1974, SKR-12; 1975, SKR-83; 1976, SKR-19; 1977, SKR-117; 1978, SKR-6, SKR-13, SKR-48; 1979, SKR-84, SKR-90; 1970s, Gangutets: - MG-312I Titan, MG-311 Vychegda sonars; + MGK-335MS Platina-MS, MG-349 Ros'-K sonars

1980s, SKR-12, SKR-84: - Ros'-K sonar; + Oka sonar

1980s, SKR-7: + Struya-M wake detector

1980s, some ships: + MG-329 Sheksna sonar

Naval service: No significant events.

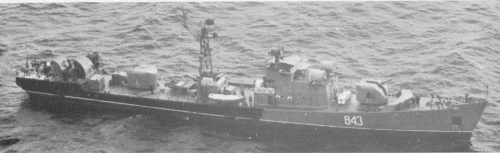

Project 35 1979
