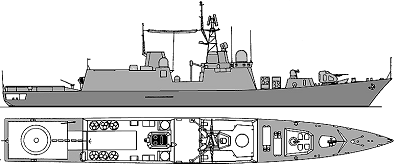

NOVIK guard ship (project 12441)
Novik
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Новик [Novik] | 1900 | Yantar', Kaliningrad | 26.7.1997 | 2004 | --- | suspended 2000 |
|
Displacement standard, t |
2560 |
|
Displacement full, t |
2900 |
|
Length, m |
116.0 wl 121.0 oa |
|
Breadth, m |
14.1 |
|
Draught, m |
9.30 max |
|
No of shafts |
2 |
|
Machinery |
COGAG: 2 M-62M cruising gas turbines + 2 M-90 boost gas turbines |
|
Power, h. p. |
12000 + 37000 = 49000 |
|
Max speed, kts |
31 |
|
Fuel, t |
gas turbine oil |
|
Endurance, nm(kts) |
4800(12) |
|
Armament |
6 x 3 Oniks SSM (VLS, 18 Oniks), 4 x 8 Poliment SAM (VLS, 32 Poliment), 2 x 4 Medvedka ASuM (8 Medvedka), 1 x 1 - 100/59 A-190, 1 x 12 - 30/54 AK-630M1-2 Roy, 1 helicopter (Ka-27) |
|
Sensors |
MR-750 Fregat-M2, Garpun, Vaygach, MR-123 Vympel, Redut radars, MGK-355MS Zvezda-1, Minotavr sonars, Vympel-R2 ECM suite, 4x PK-10 Smelyy, 2x PK-2 decoy launchers, Tron-Diplomat CCS |
|
Complement |
210 |
Project history: Planned development of project 11660 with extended attack capabilities. Completion was planned in 2001 but in late 1990s building was suspended due to changes in naval conceptions. In 2007 it was decided to complete ship as TS with new name Borodino, but really building was never restarted. Planned Riurik and Peresvet were never laid down.
